Integral Fans

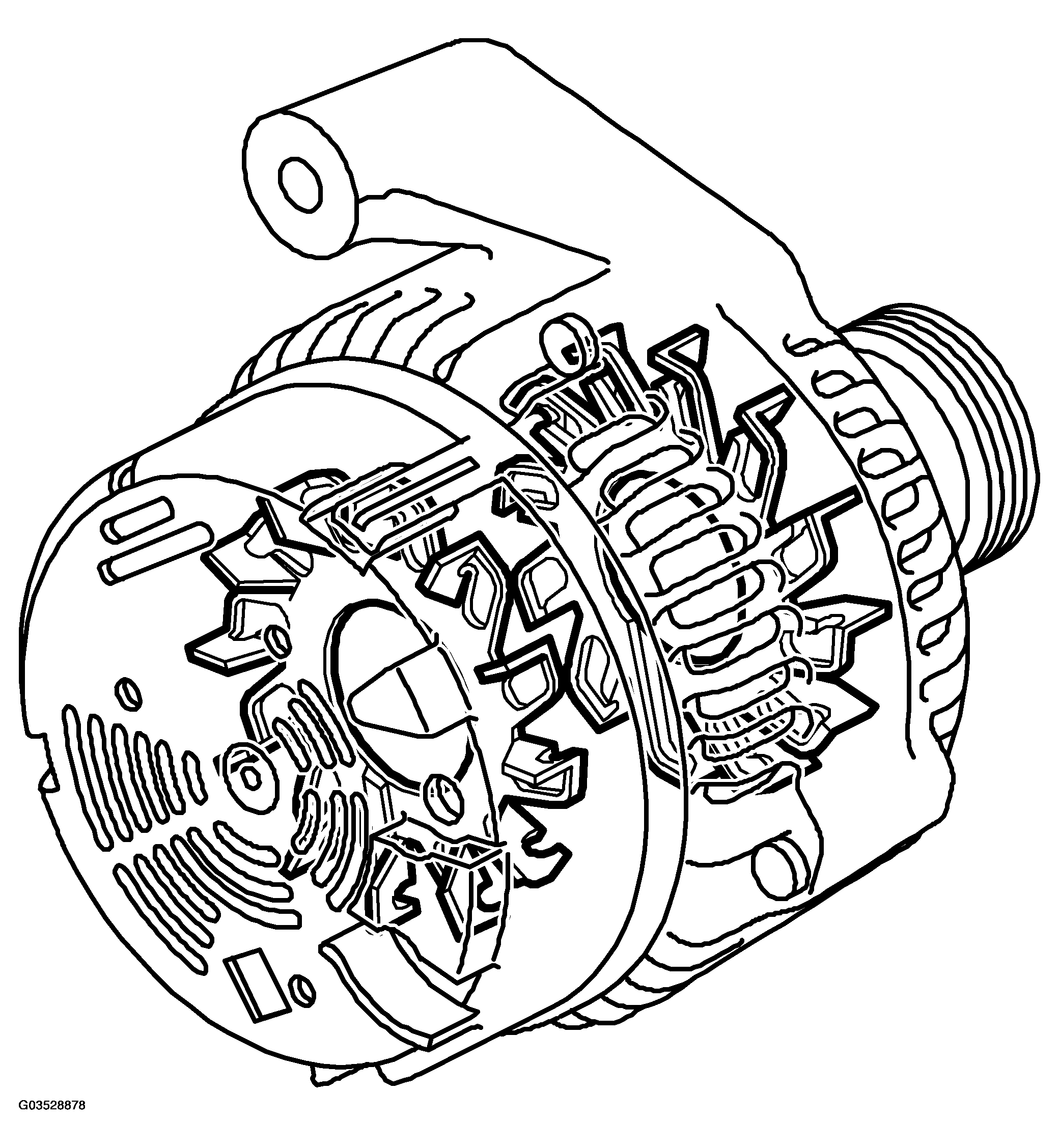

Fig 1: Identifying Integral Fans
G03528878Courtesy of SAAB-SCANIA OF AMERICA, INC.

Heat that builds up in the generator while it is running can eventually cause damage. To dissipate it, the generator has two integral fans, powered from the rotor shaft.
