Component Location
›
Grounding point G25
›
Components connected:
Components connected:
CONNECTED COMPONENTS
1
Battery
The redundancy ground from the front left wheel housing is also connected.

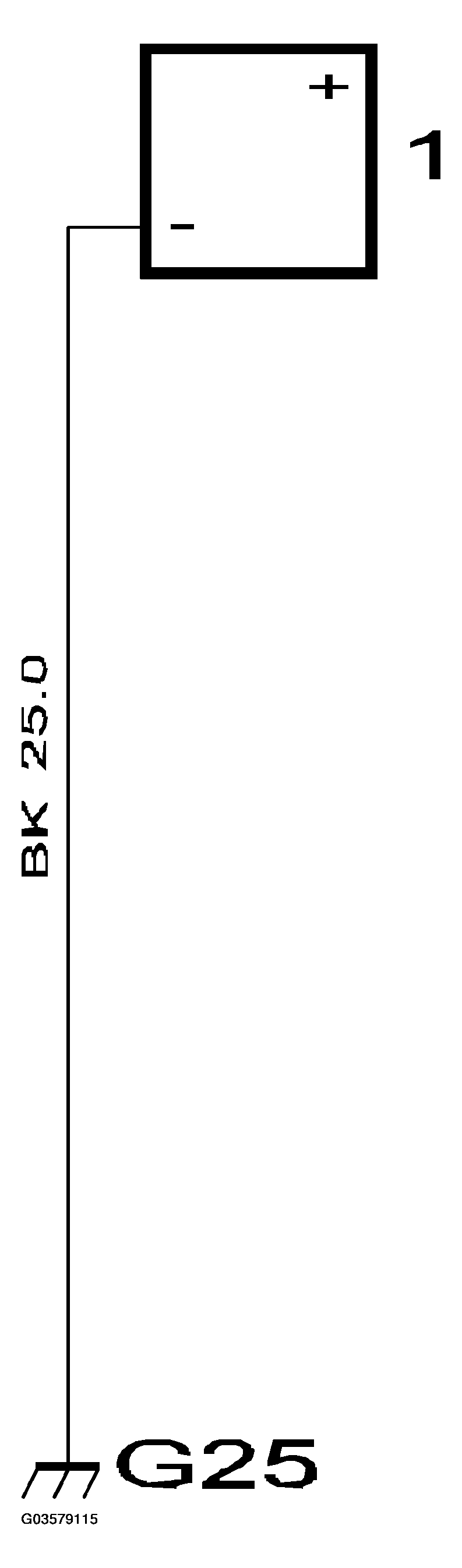

Fig 1: Grounding Point G25 Circuit
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
