Charge Regulator: Removal

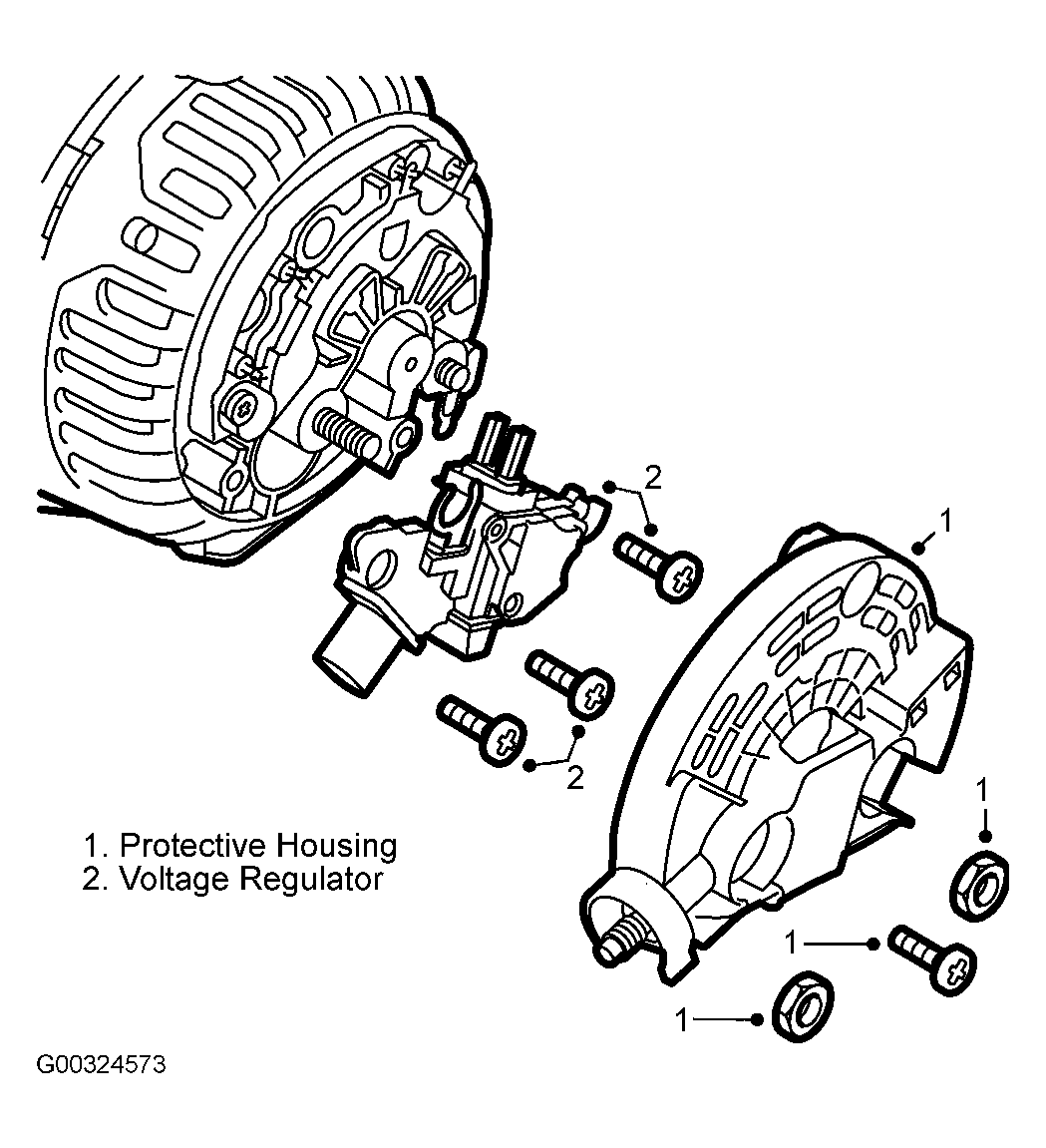

Remove the protective housing from the generator. Remove the voltage regulator. See Fig 1 .
NOTE:
The generator brushes are fixed to the voltage regulator. The whole unit must be replaced with a new one.
