Battery Specifications

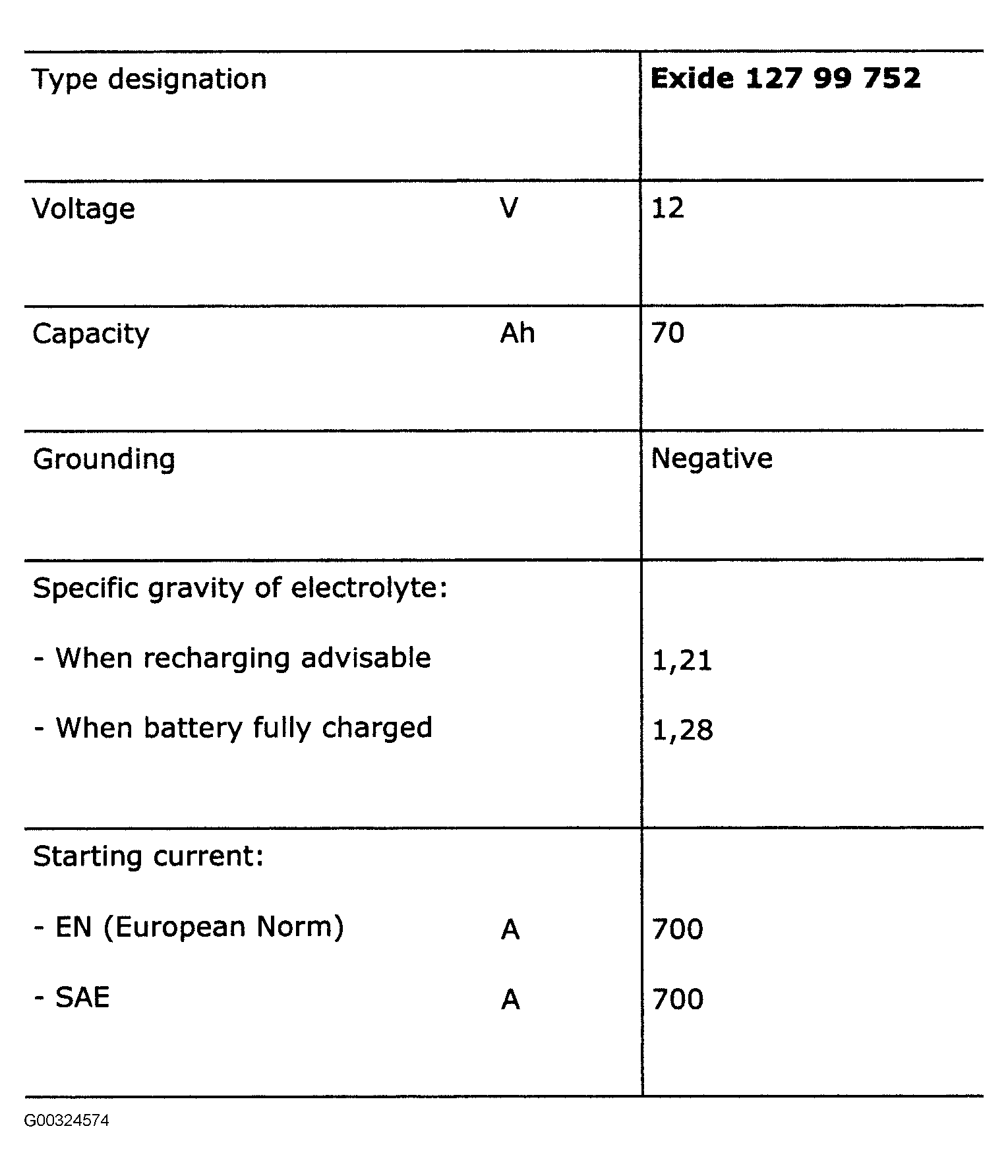

Fig 1: Battery Specifications (70 Ah)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

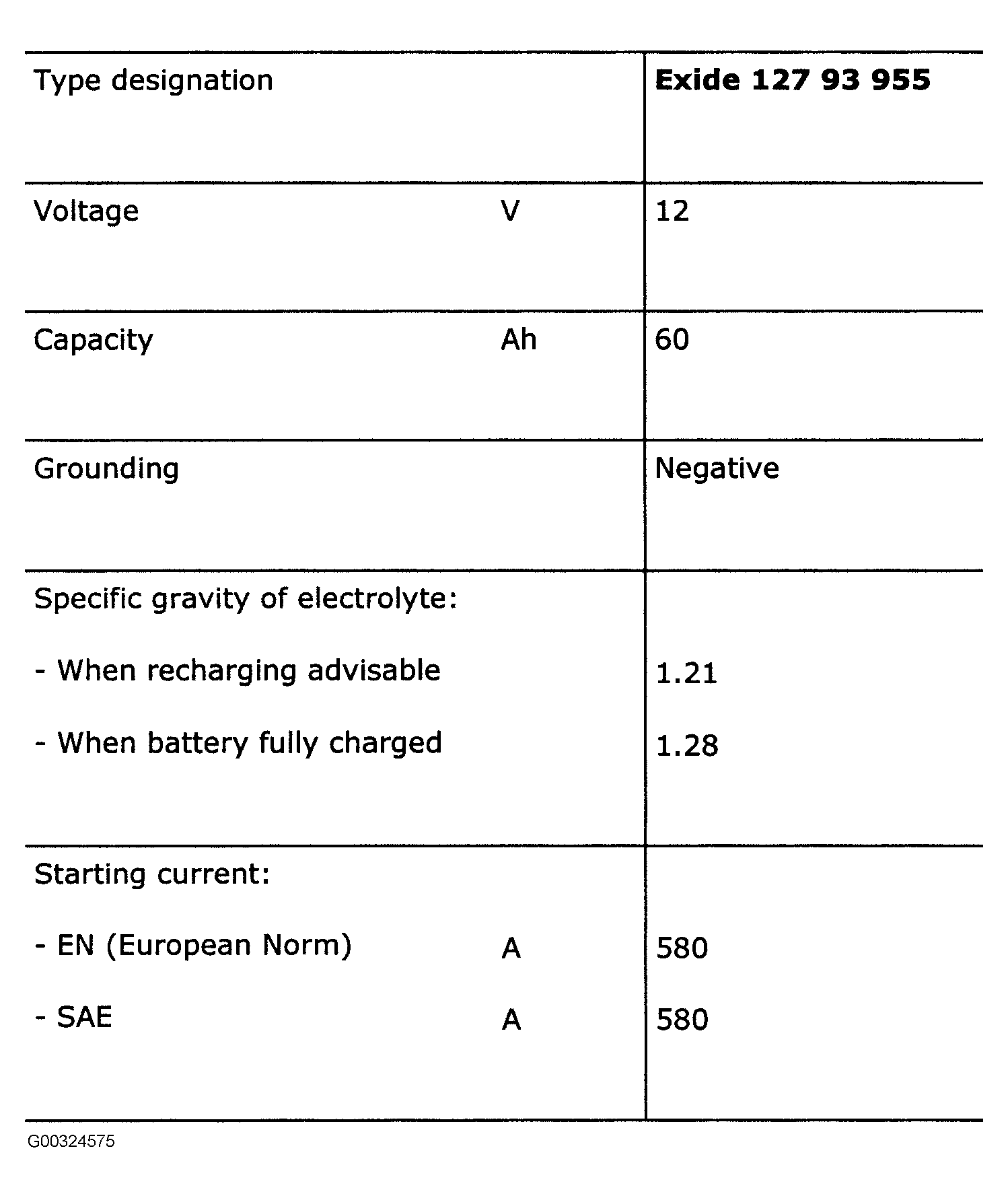

Fig 2: Battery Specifications (60 Ah)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
