Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Adjustment-Replacement › Charge air control valve › To remove

To remove

  1. Unplug the connector.

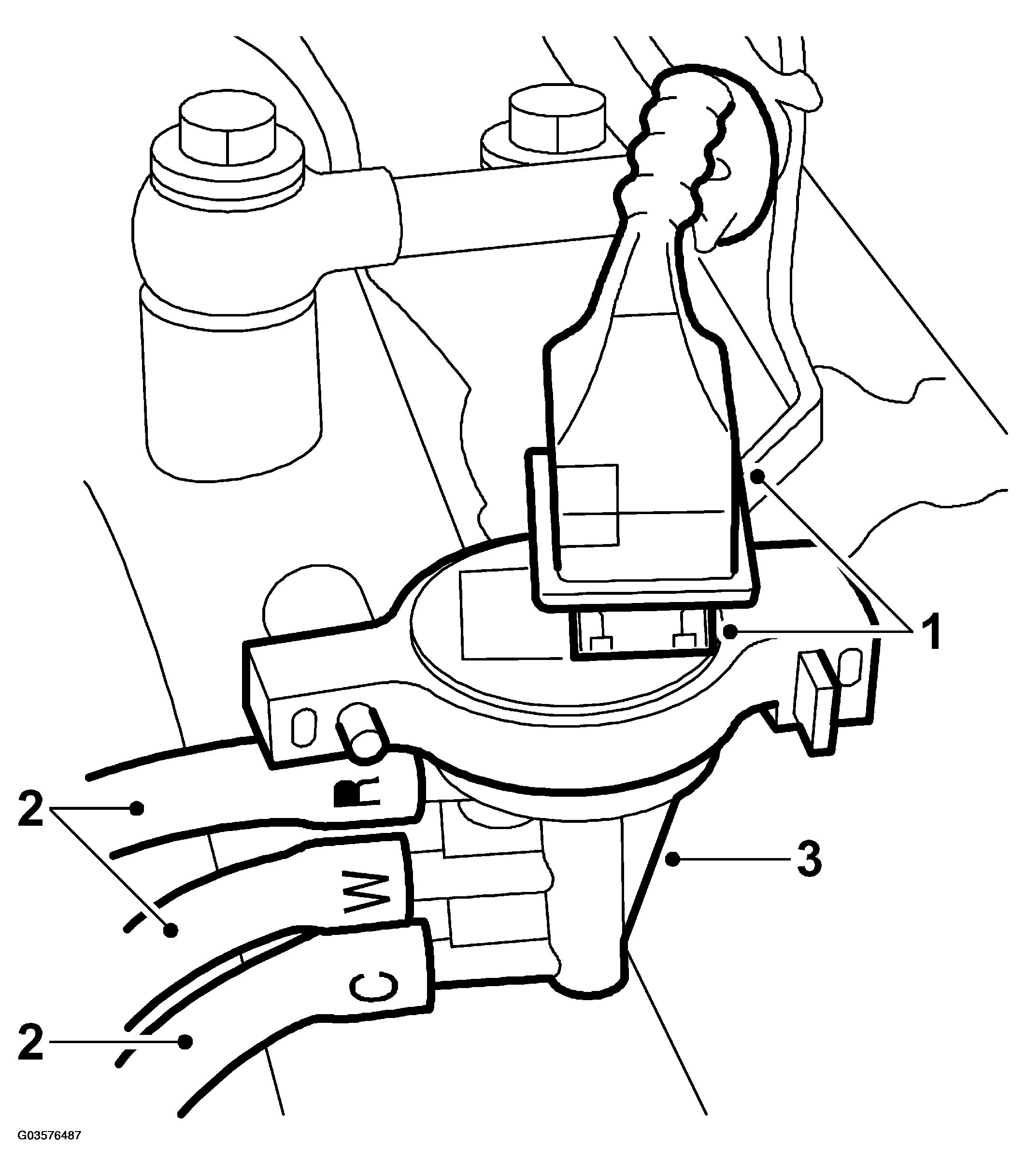

    Fig 1: Illustration For Steps 1-3
    G03576487Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Mark the hoses to the control valve and detach them.
  3. Detach the valve from the expanding pin and metal bracket.
