To remove

  1. Unplug the connector from the EVAP canister purge valve. Make a note of the location of the vale.

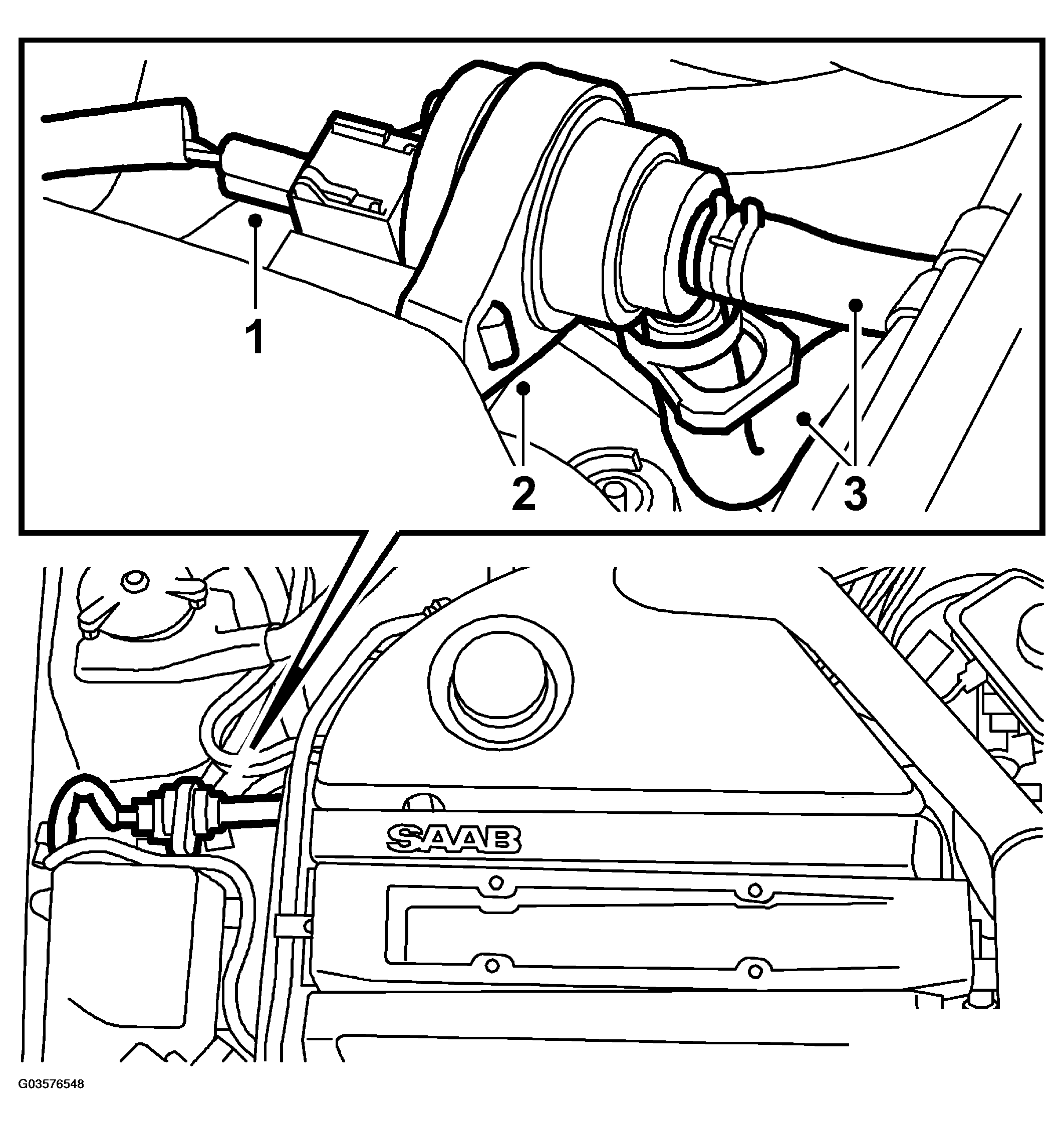

    Fig 1: Illustration For Steps 1-3
    G03576548Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the valve from the holder.
  3. Remove the hoses.
