Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Adjustment-Replacement › Main relay › To fit

To fit

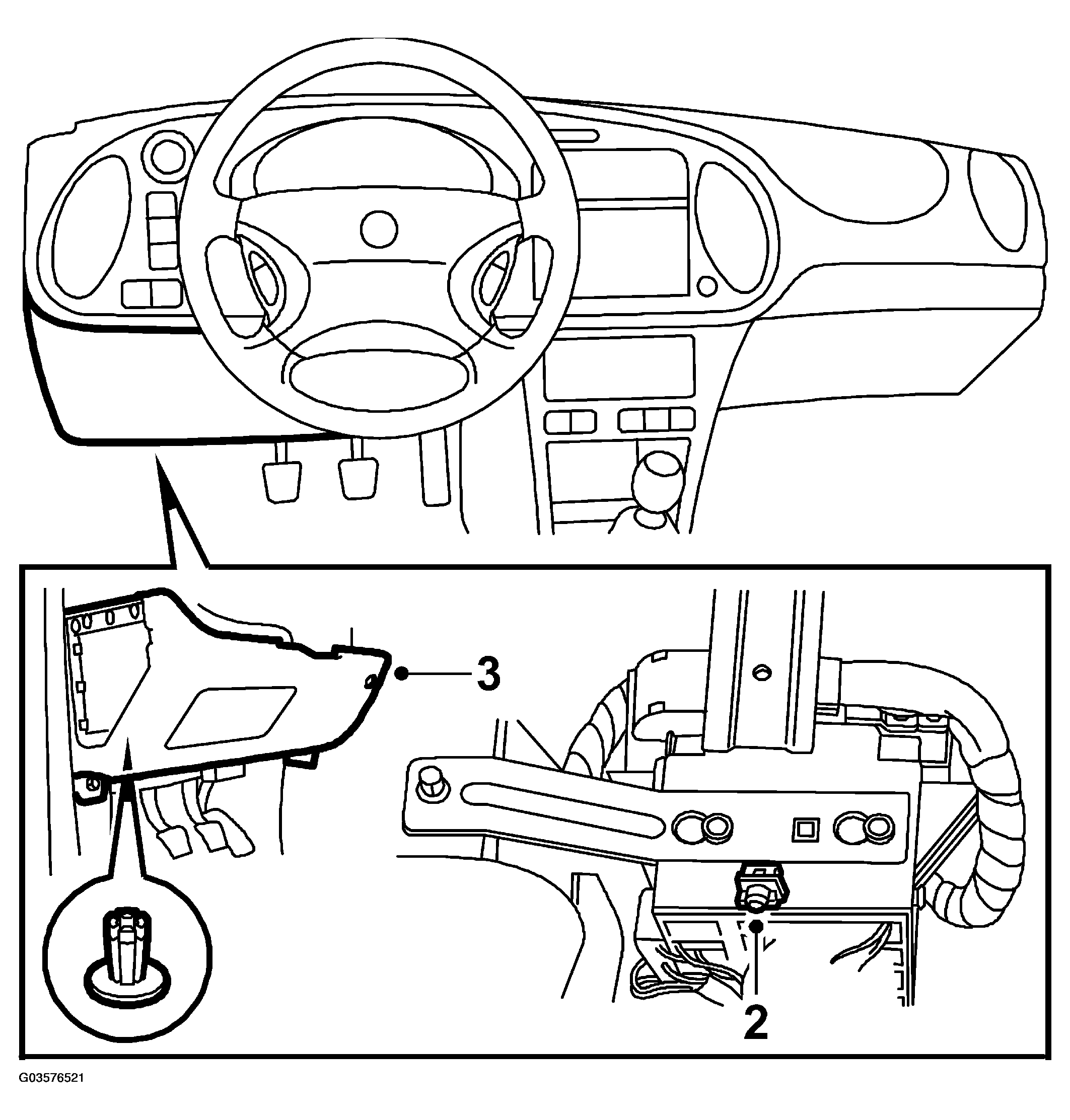

Fig 1: Illustration For Steps 2-3
G03576521Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Tilt up the relay holder and fit the screw.
  3. Fit the cover on the knee protection.
