Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Connector H33-5 › LHD

Connector H33-5: LHD

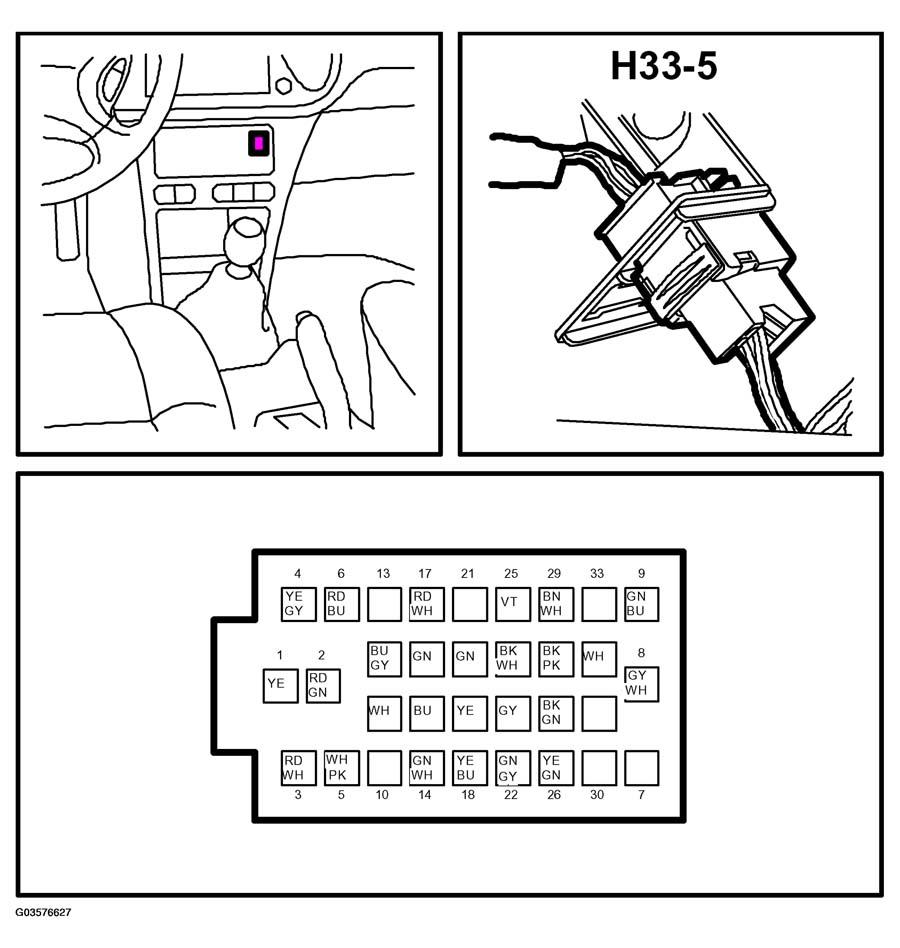

Fig 1: Identifying H33-5 Connector Pinouts (LHD)
G03576627Courtesy of SAAB-SCANIA OF AMERICA, INC.
