Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Control module, TCM for T7 (502b)

Control module, TCM for T7 (502b)

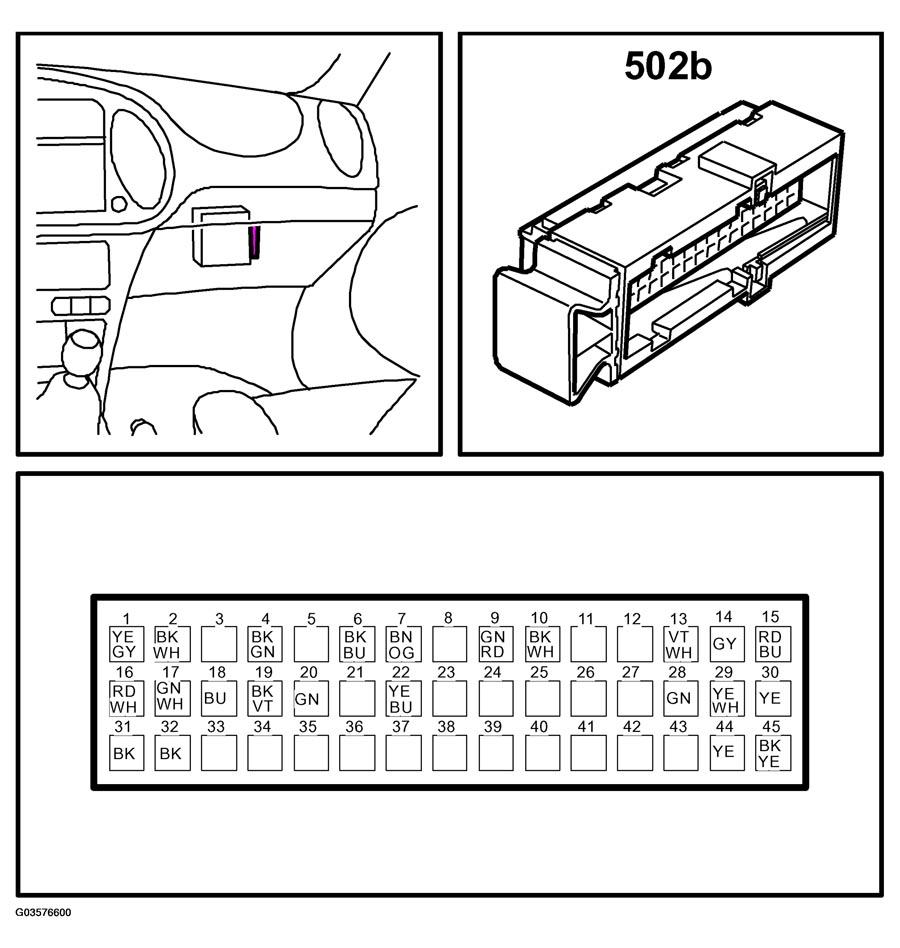

Fig 1: Identifying Control Module - Connector Pinouts
G03576600Courtesy of SAAB-SCANIA OF AMERICA, INC.
