Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Heating element, oxygen sensor (271) › Rear

Heating element, oxygen sensor (271): Rear

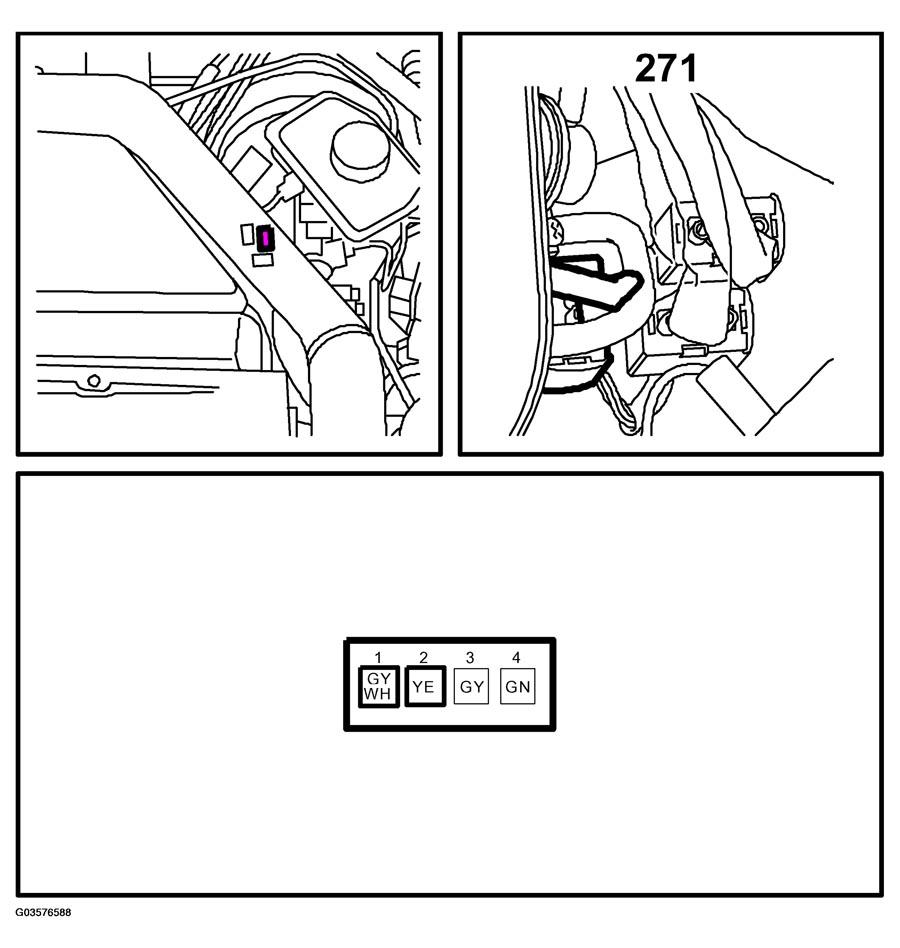

Fig 1: Identifying Oxygen Sensor Heating Connector Pinouts Element - Rear
G03576588Courtesy of SAAB-SCANIA OF AMERICA, INC.
