TRIONIC T7 Fuel Control System
›
Component Location
›
Position sensor, crankshaft (345)
›
PSG16
Position sensor, crankshaft (345): PSG16

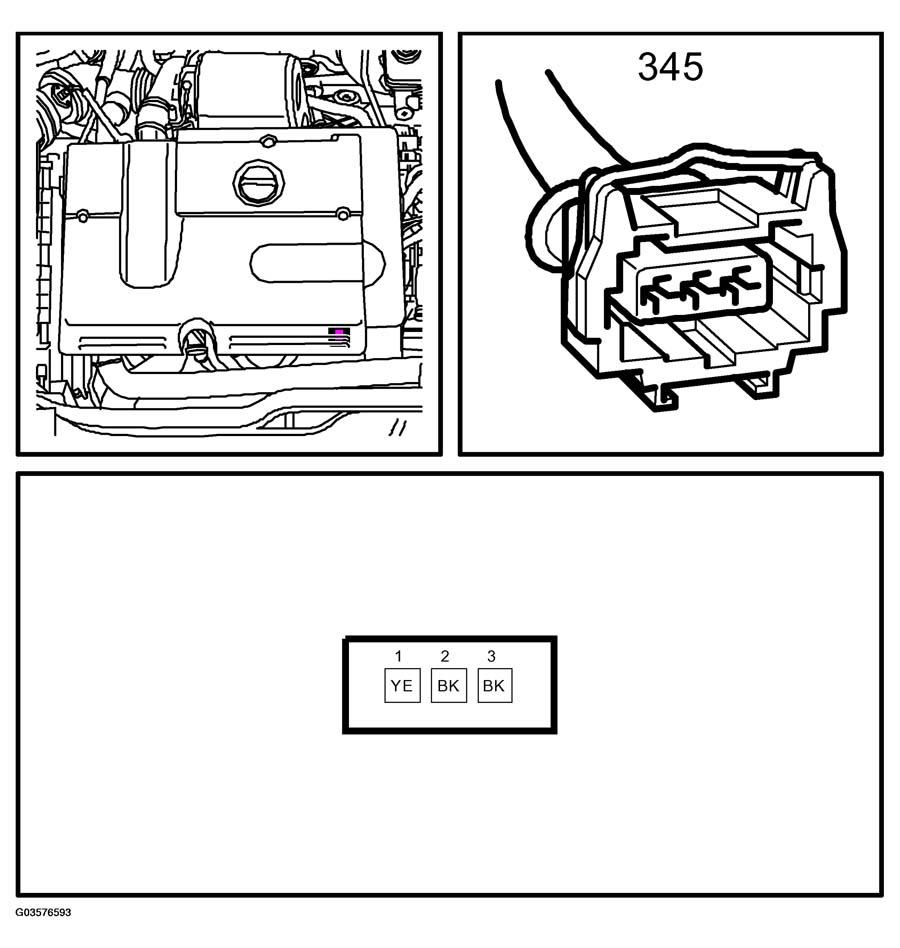

Fig 1: Identifying Crankshaft Position Sensor Connector Pinouts - PSG16
Courtesy of SAAB-SCANIA OF AMERICA, INC.
