Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Relay, A/C compressor (156)

Relay, A/C compressor (156)

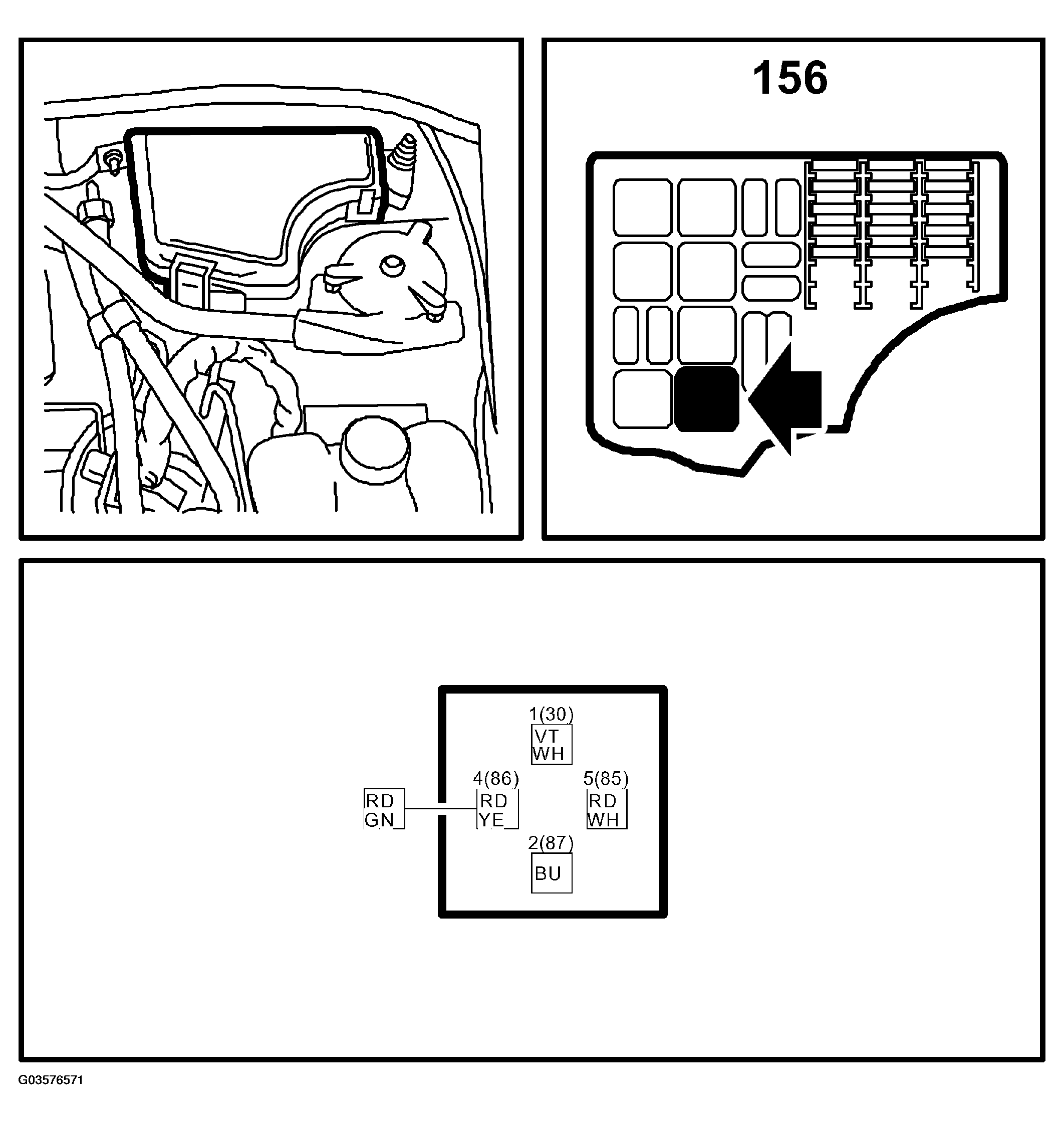

Fig 1: Identifying A/C Compressor Relay - Connector Pinouts
G03576571Courtesy of SAAB-SCANIA OF AMERICA, INC.
