Home › Saab › 2003 › 9-3 Vector, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Relay, starter relay (517) › RHD

Relay, starter relay (517): RHD

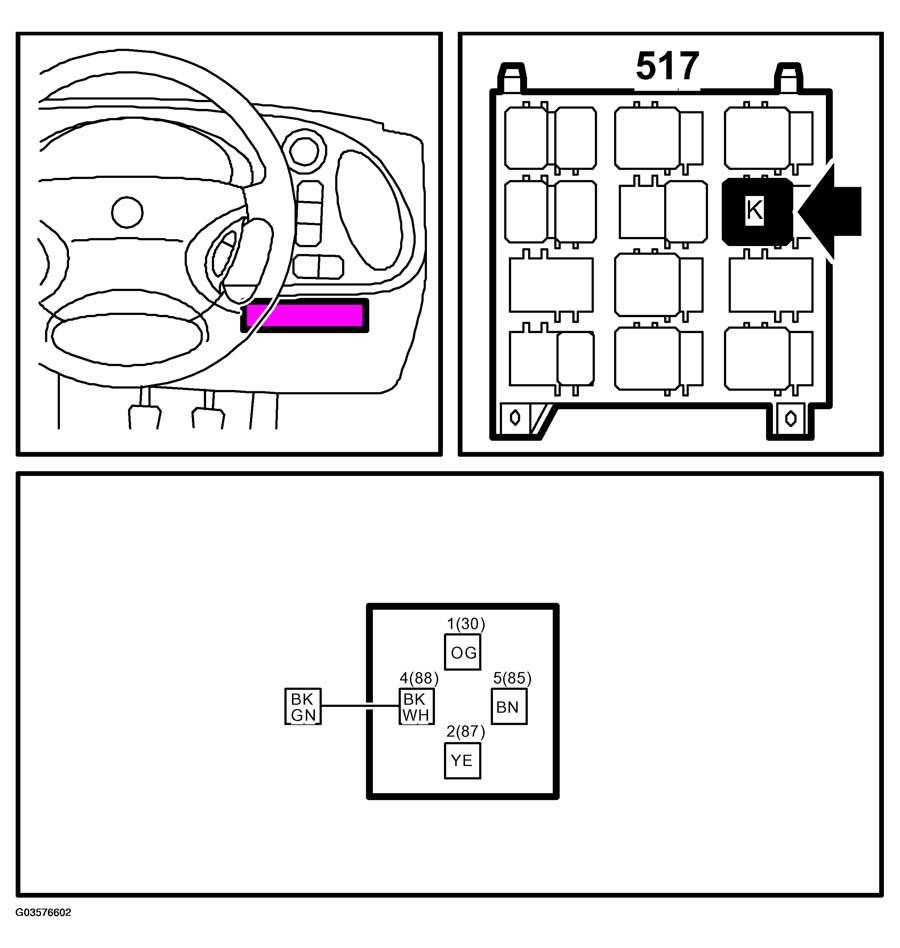

Fig 1: Identifying Starter Relay Connector Pinouts - RHD
G03576602Courtesy of SAAB-SCANIA OF AMERICA, INC.
