DTC P0134: O2S Circuit. No Activity Detected. Sensor 1.: Notes

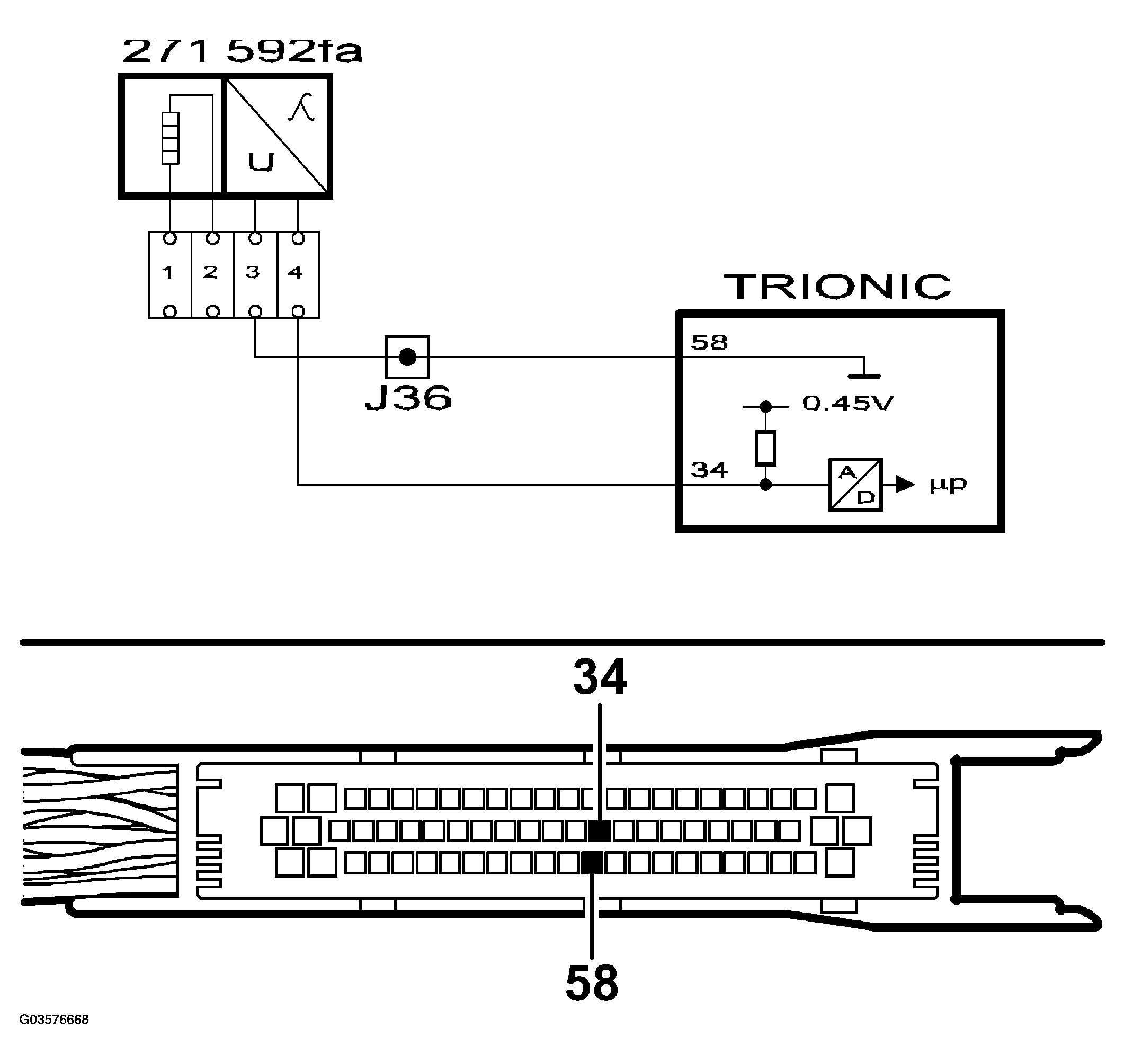

Fig 1: O2S Circuit Diagram - No Activity Detected - Sensor 1
G03576668Courtesy of SAAB-SCANIA OF AMERICA, INC.
