DTC P0140: O2S Circuit. No Activity Detected. Sensor 2.: Notes

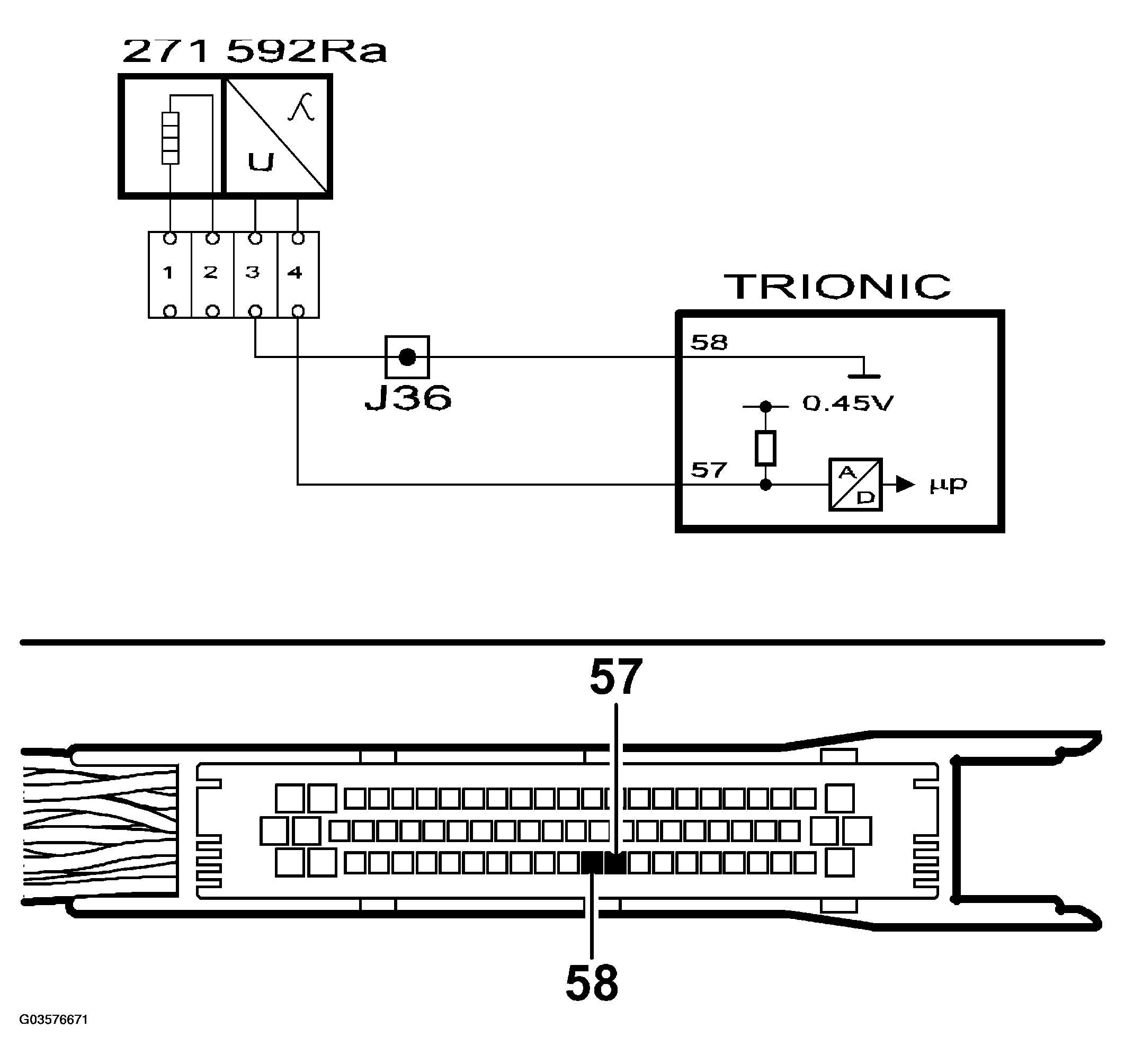

Fig 1: O2S Circuit Diagram - No Activity Detected - Sensor 2
G03576671Courtesy of SAAB-SCANIA OF AMERICA, INC.
