TRIONIC T7 Fuel Control System
›
Fault Diagnosis Fault Codes
›
DTC P1131: O2S. Switch point - lean. Sensor 1
›
Notes
DTC P1131: O2S. Switch point - lean. Sensor 1: Notes

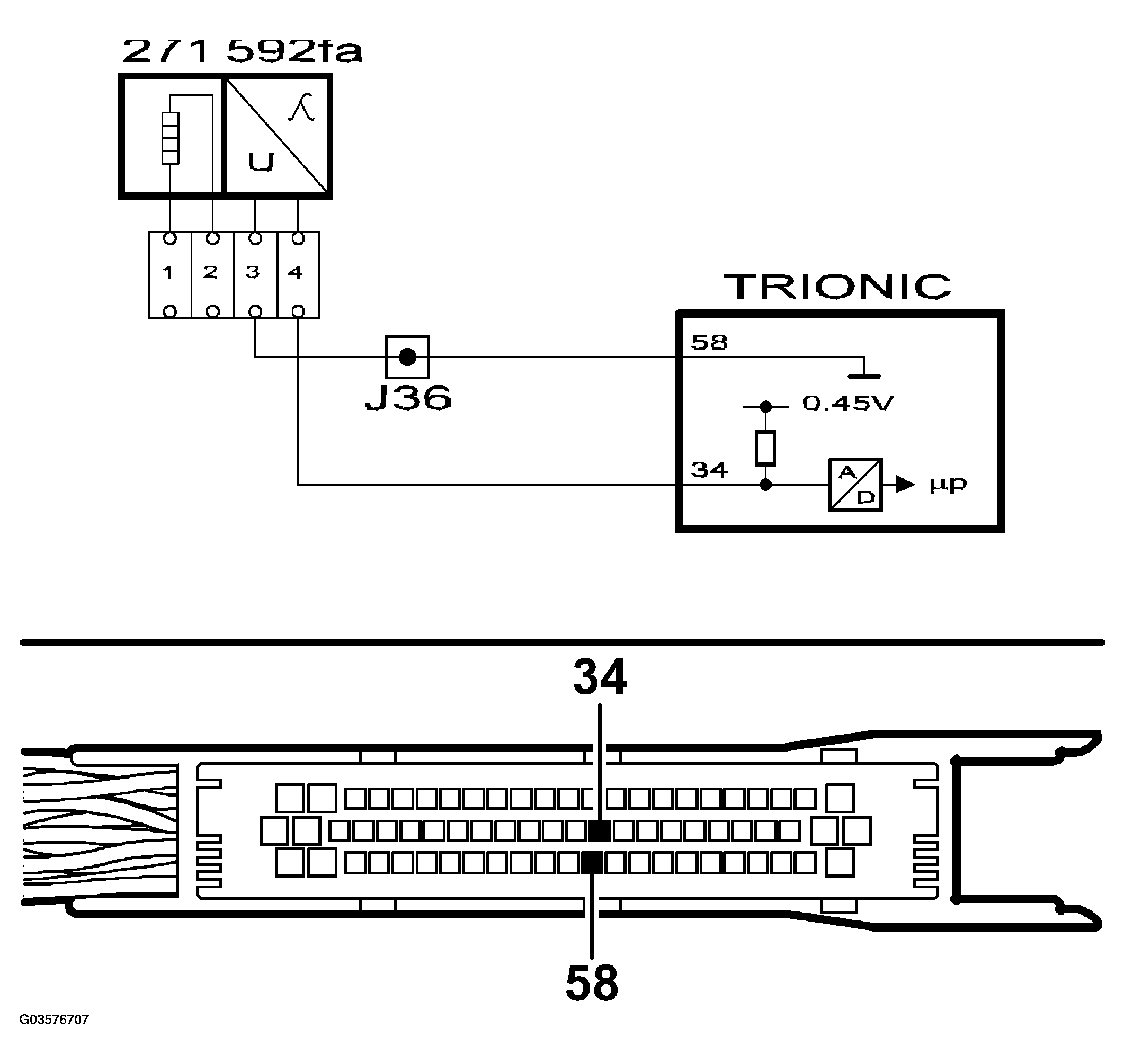

Fig 1: Circuit Diagram - O2S. Switch Point - Lean (Sensor 1)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
