Main relay (229)

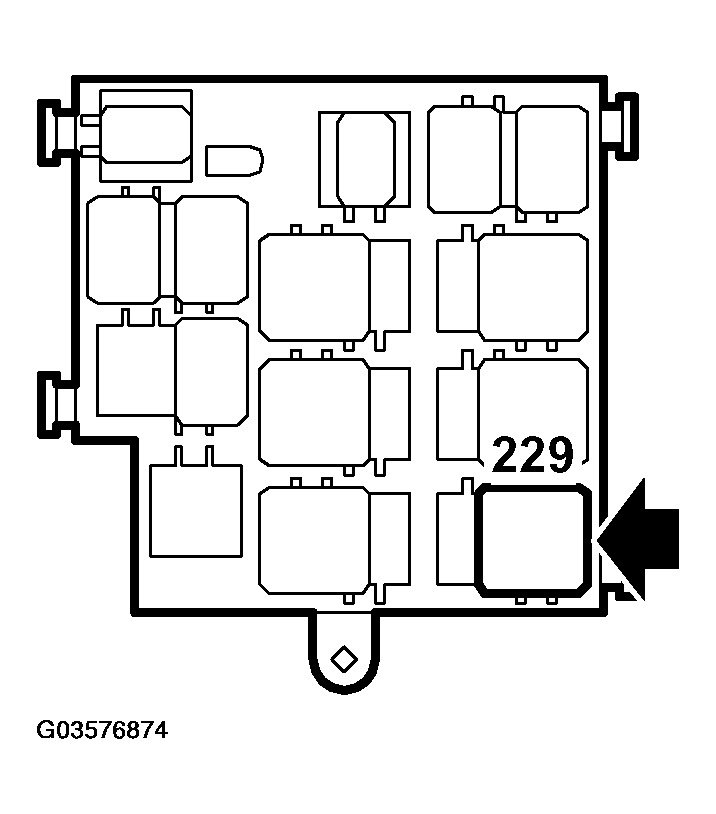

Fig 1: Identifying Main Relay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - MAIN RELAY

Location		In dashboard main relay board
Resistance, winding at 20°C (68°F)	Ohms	85+/-5
Nominal control voltage	V	12
Rated current	A	30
