Air Mass Limitation: Braking
The maximum engine torque must be limited when the brake pedal is depressed for reasons of strength. The following three conditions must be fulfilled for this function to be activated:
- B+ on the input from brake light switch, pin 63.
- B+ on the input from brake and clutch pedal switches, pin 29.

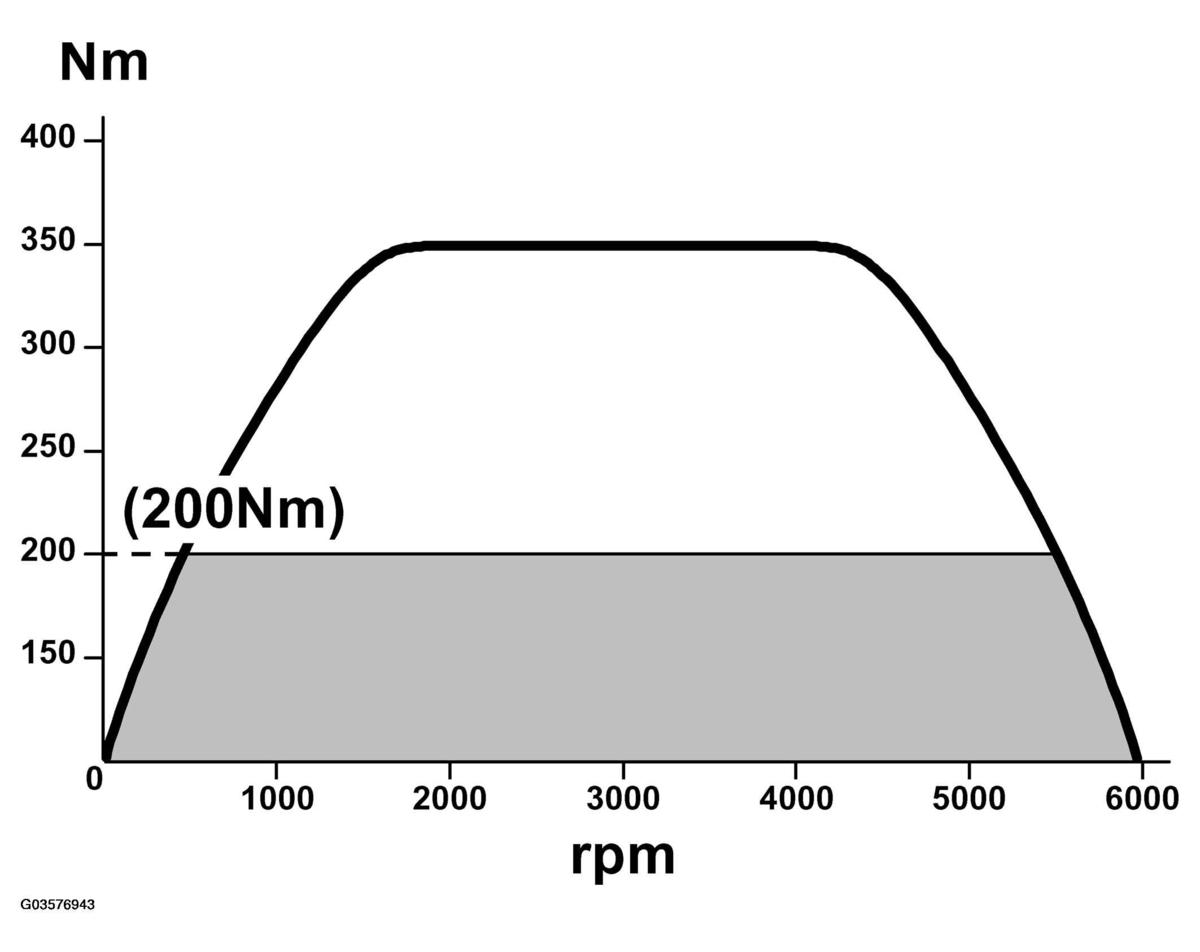

Engine torque is limited to 200 N.m.
Engine torque is converted to mg air/combustion and constitutes the maximum air mass/combustion permitted by the automatic transmission.
