Injector opening duration

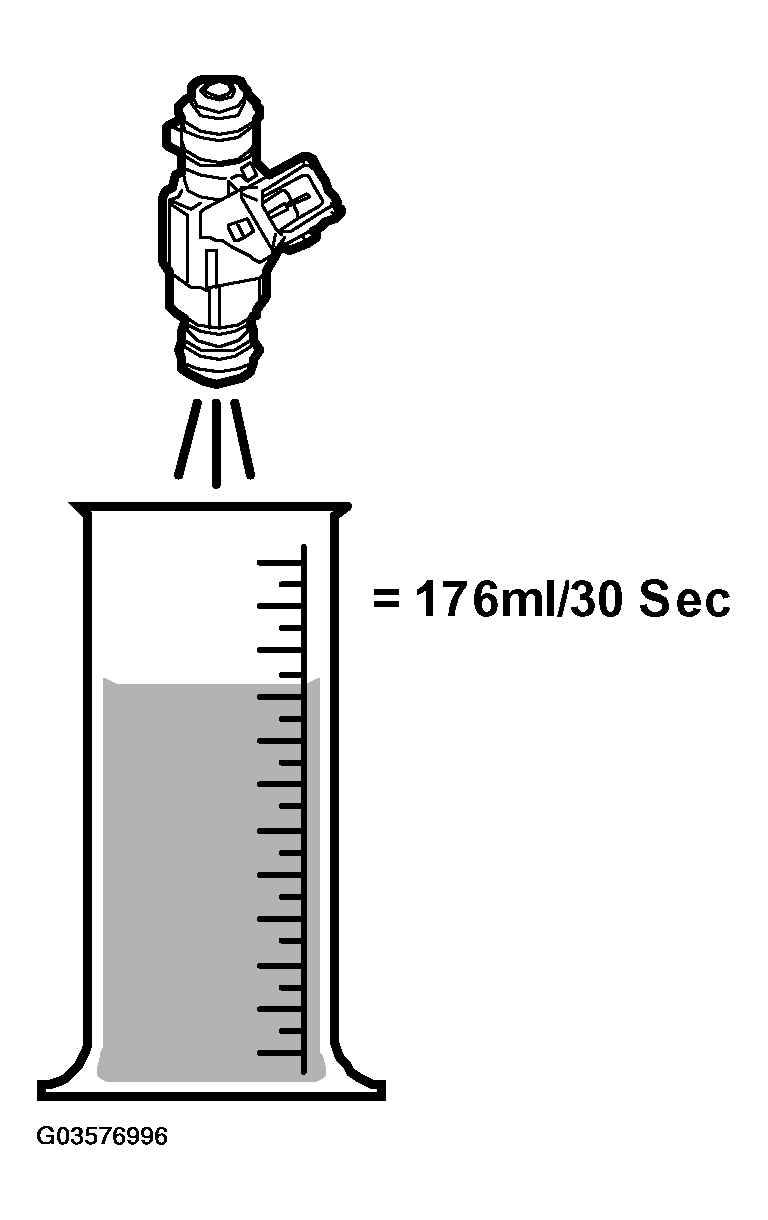

Fig 1: Identifying Injector Opening Duration
G03576996Courtesy of SAAB-SCANIA OF AMERICA, INC.

The fuel volume/combustion is converted to the time during which the injector must be open based on the knowledge of the injector flow at 3 bar differential pressure.
