To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille.
  2. Undo the direction indicator screw, unplug the connector and remove the direction indicator.
  3. Remove the 3 screws holding the headlamp.

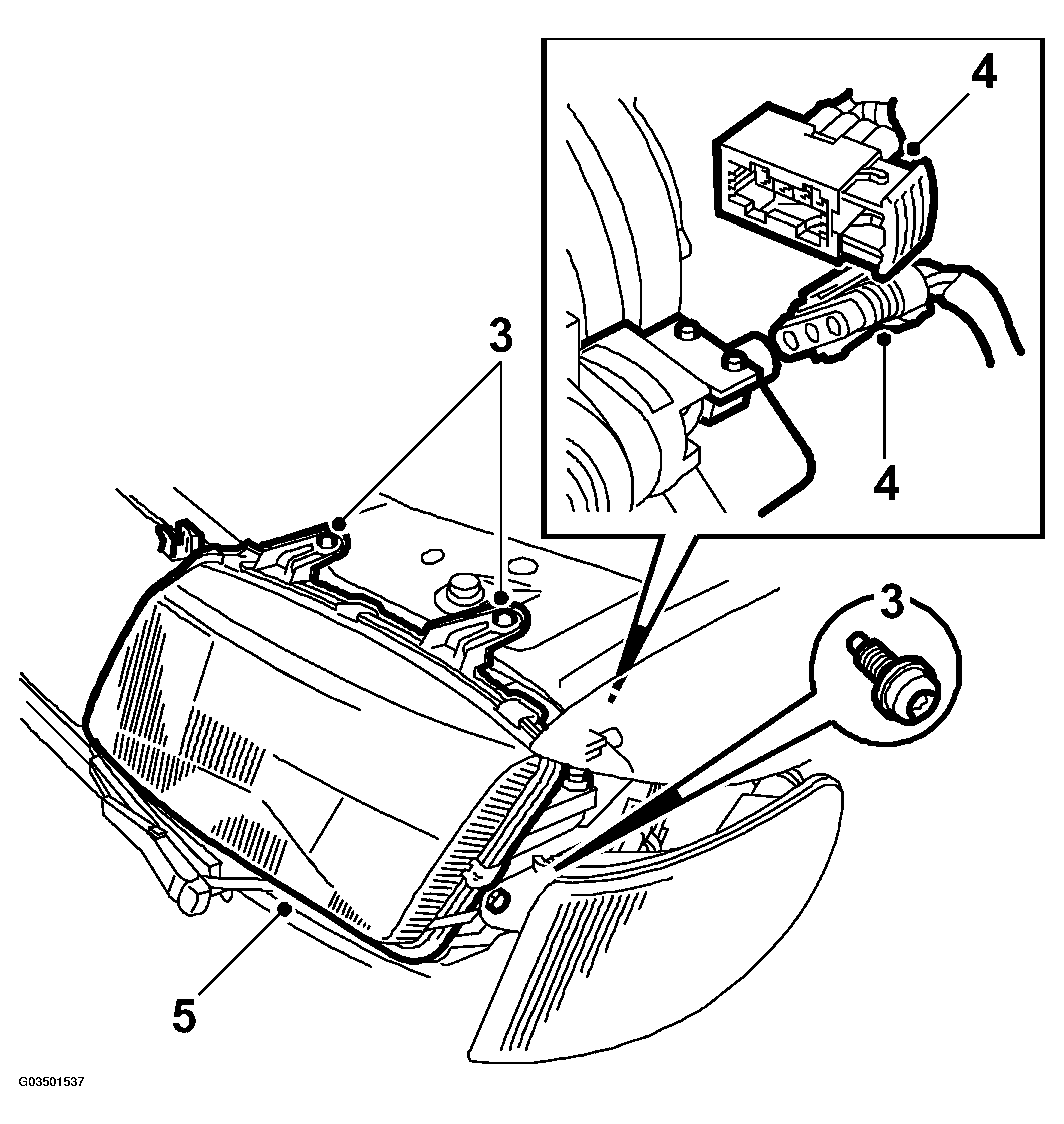

    Fig 1: Illustration For Step 3-5
    G03501537Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lift out the headlamp slightly so that the headlamp connector can be unplugged.
  5. Lift out the headlamp.
