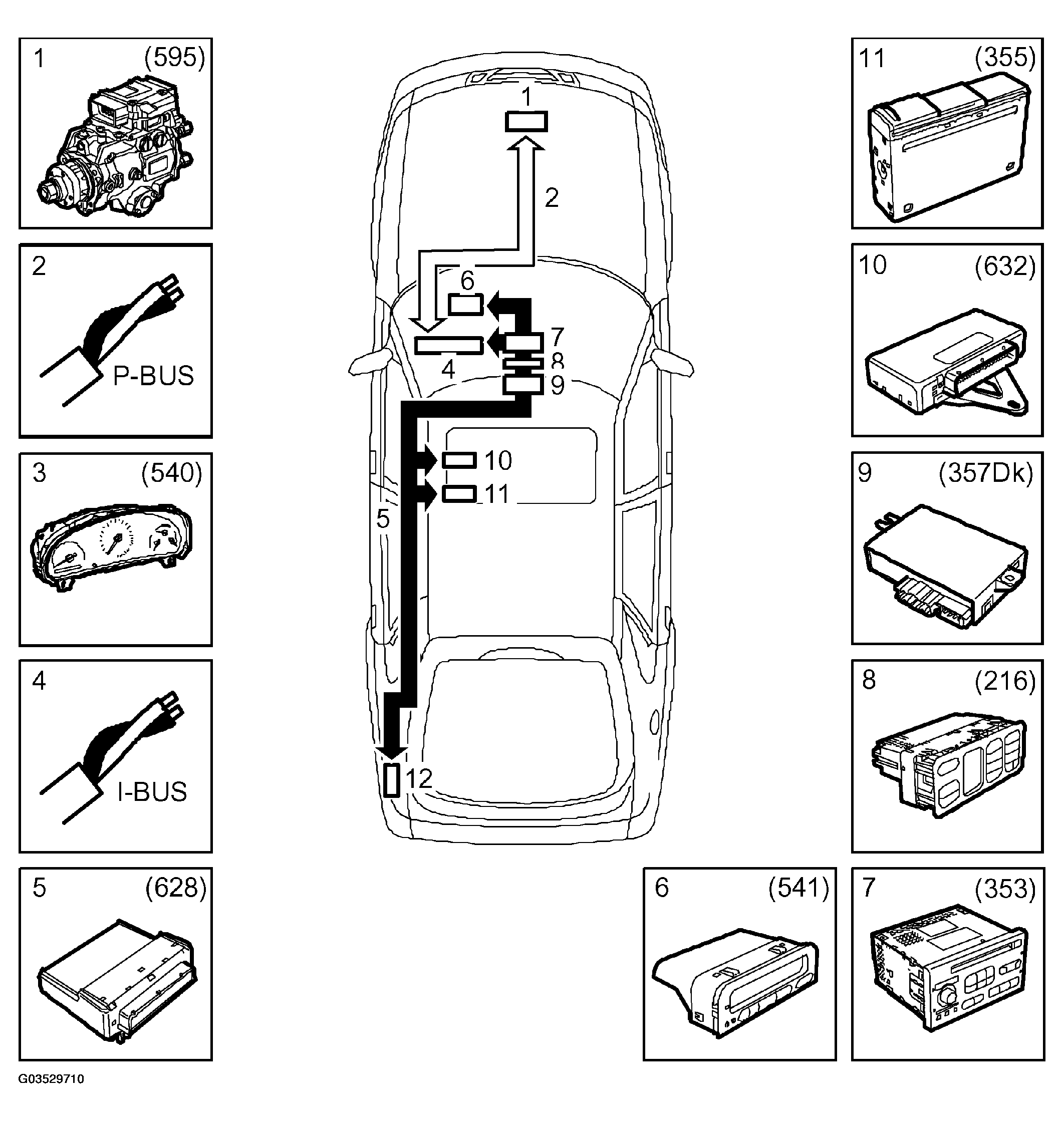

System Overview, Bus-Connected Components, Cars With Engine Management System PSG 16
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel pump with control module PSG 16 (595)
- P-bus (Powertrain bus)
- MIU (Main Instrument Unit) (540)
- I-bus (Instrument bus)
- DICE (Dashboard Integrated Central Electronics) (628)
- SID (Saab Information Display) (541)
- Audio system, main unit (353)
- ACC, (Automatic Climate Control) (216)
- PSM, (Power Seat Memory), (357Dk)
- TWICE, (Theft Warning & Integrated Central Electronics) (632)
- CDC (CD changer) (355)
