System Overview, Components Connected To K Lead, PSG 16

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

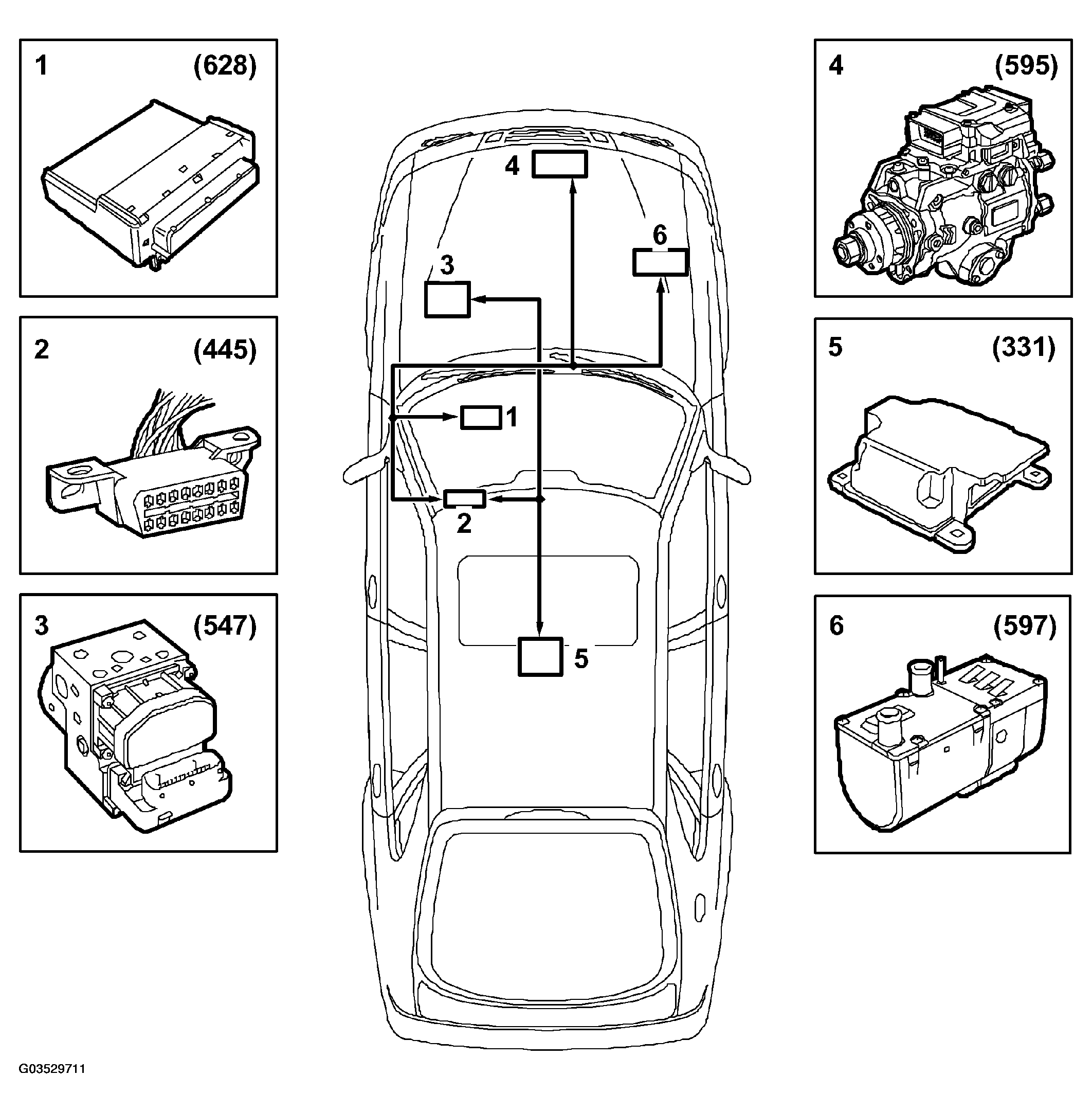

Fig 1: System Overview (Components Connected To K Lead, PSG 16)
G03529711Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. DICE (Dashboard Integrated Central Electronics) (628)
  2. Data link connector (H16-5/445)
  3. ABS (Anti-lock Brake System) (547)
  4. PSG 16, engine management system diesel (595)
  5. Airbag (SRS) (331)
  6. DAH (Diesel Additional Heater) (597)
