System Overview, Functions, Cars With Engine Management System PSG 16: RHD
WARNING:
This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

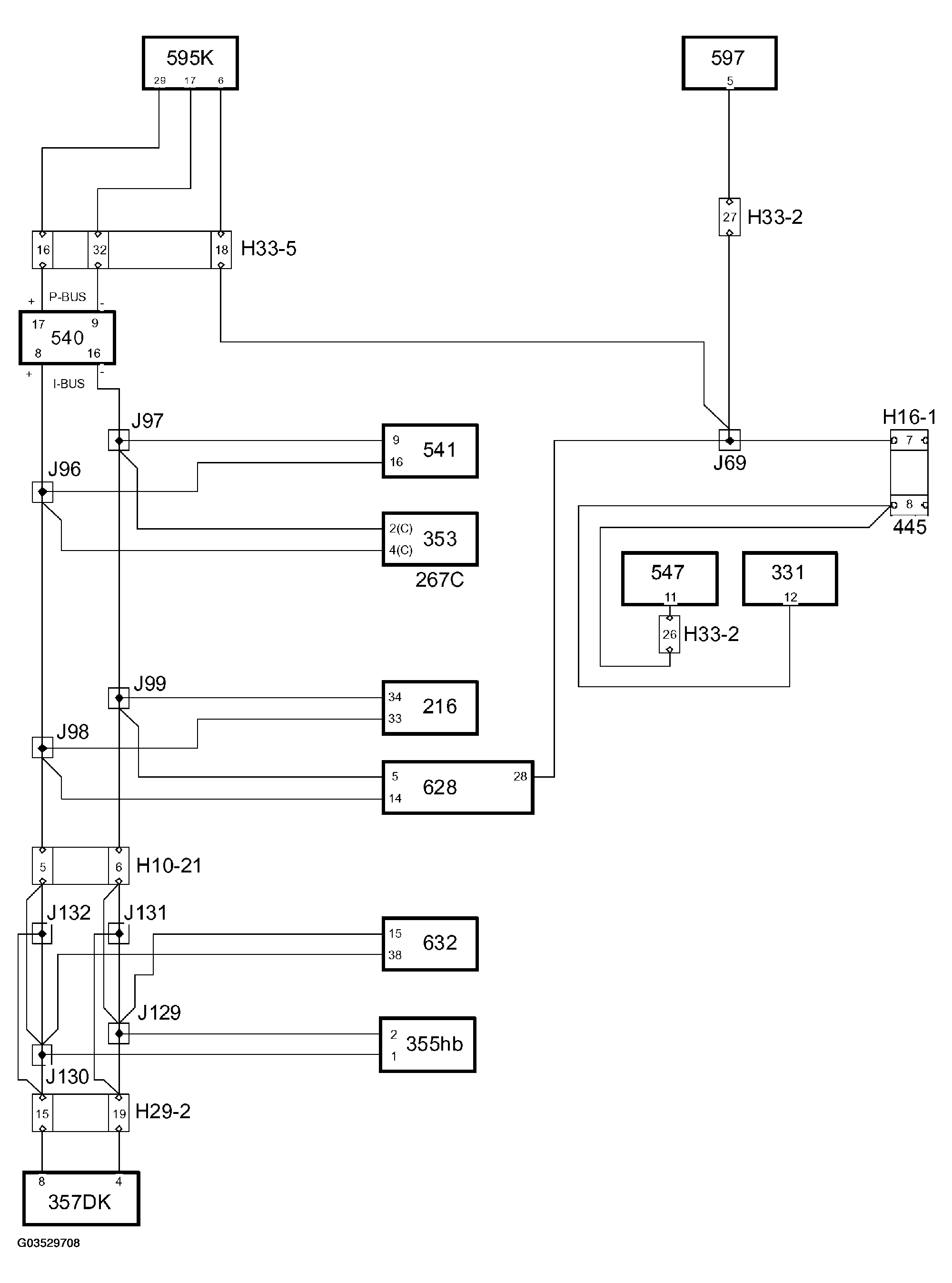

Fig 1: Circuit Diagram - Engine Management System PSG 16 (RHD)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
