To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Cars with ADM: Plug in the connector.

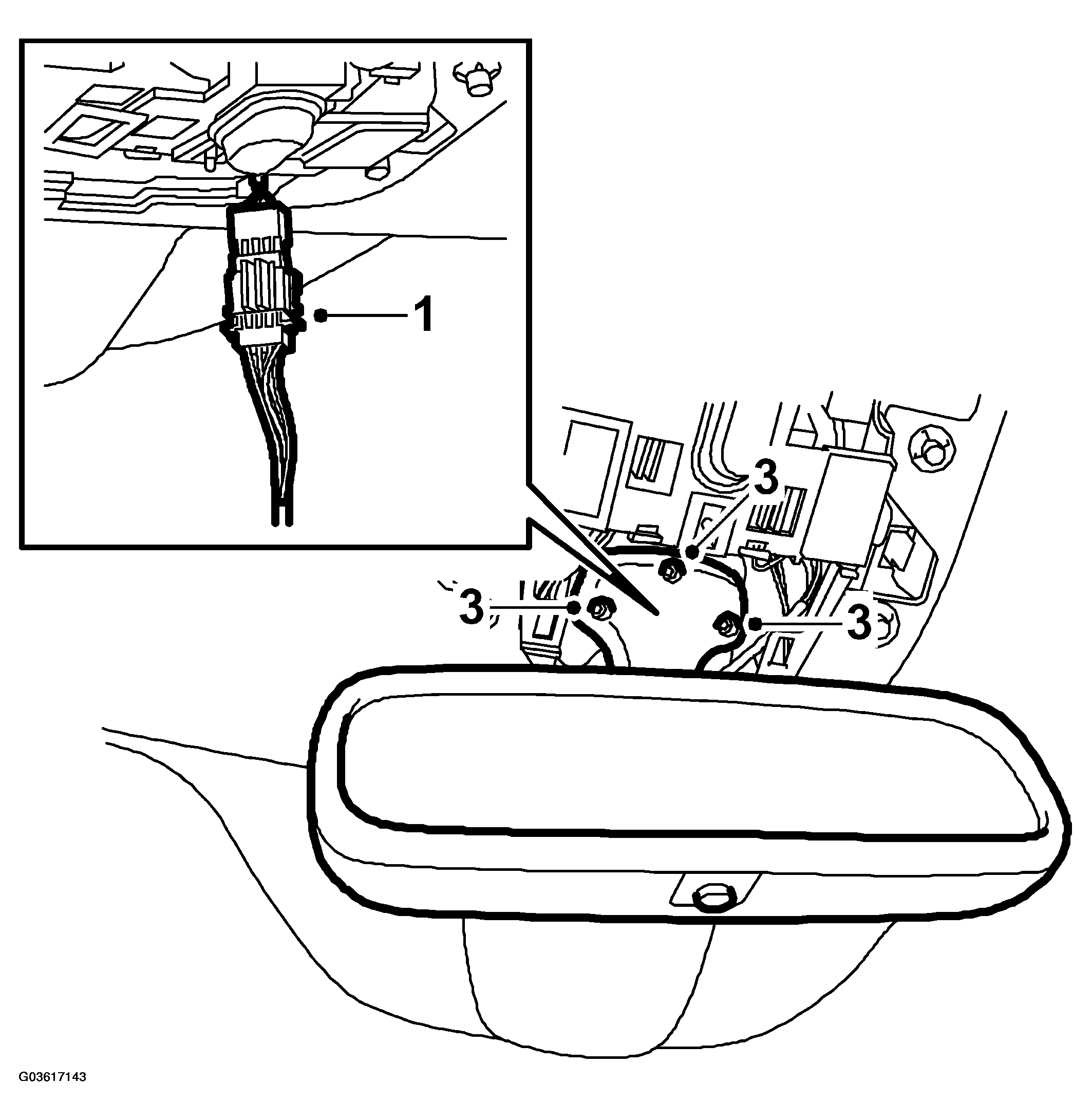

Fig 1: Illustration For Step 1 And 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Cars with ADM: Fit the connector to the lamp console.
IMPORTANT: Ensure that the wires are not trapped.
Put the rear-view mirror in place and fit the screws.
Fit the roof light center cover.

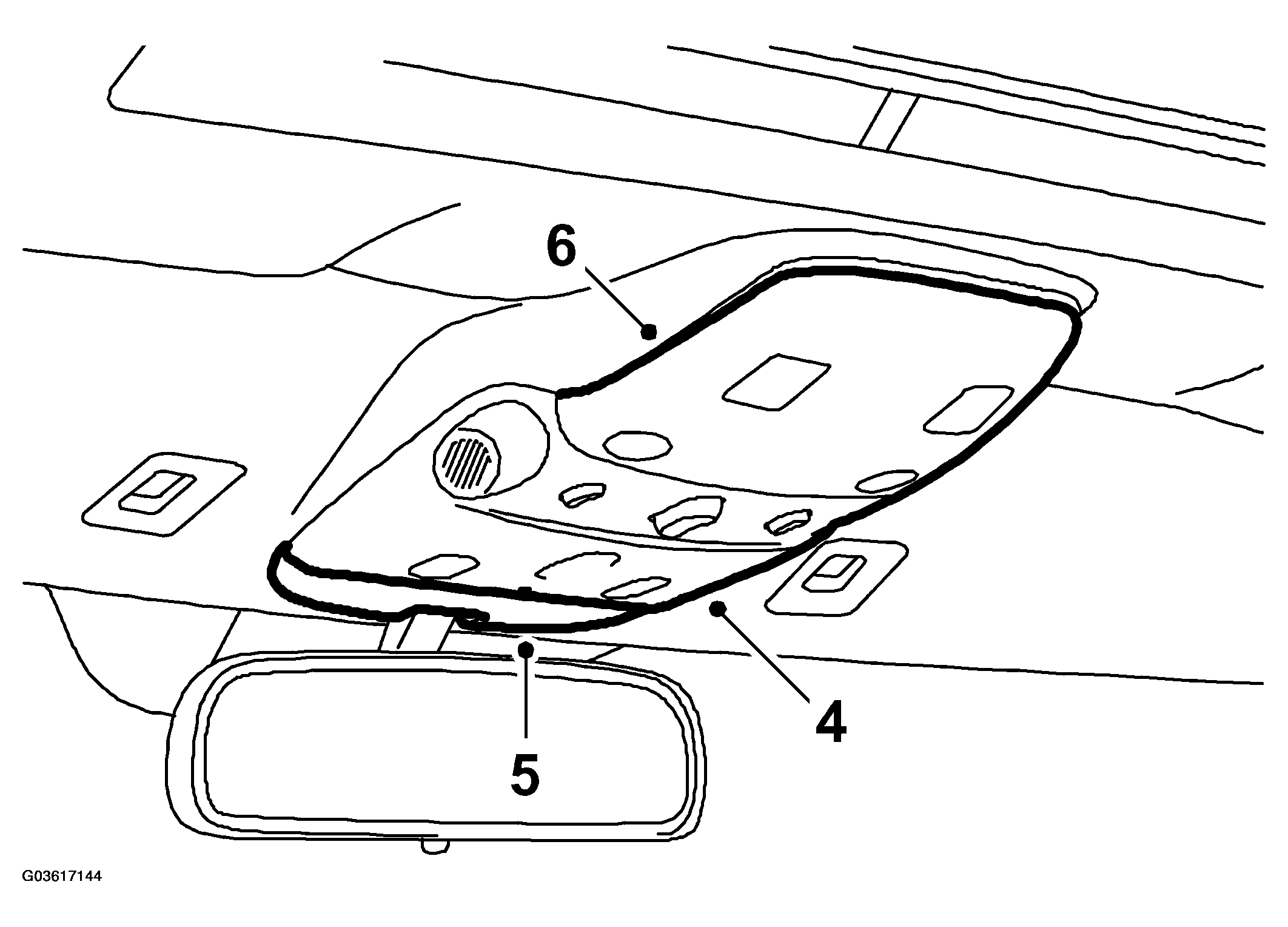

Fig 2: Illustration For Step 4 To 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the roof light front cover.
Fit the roof light rear cover.
Check the operation of the mirror and the lamps.
Cars with ADM: Perform function check of the automatic anti-dazzle rear-view mirrors.
