Main components

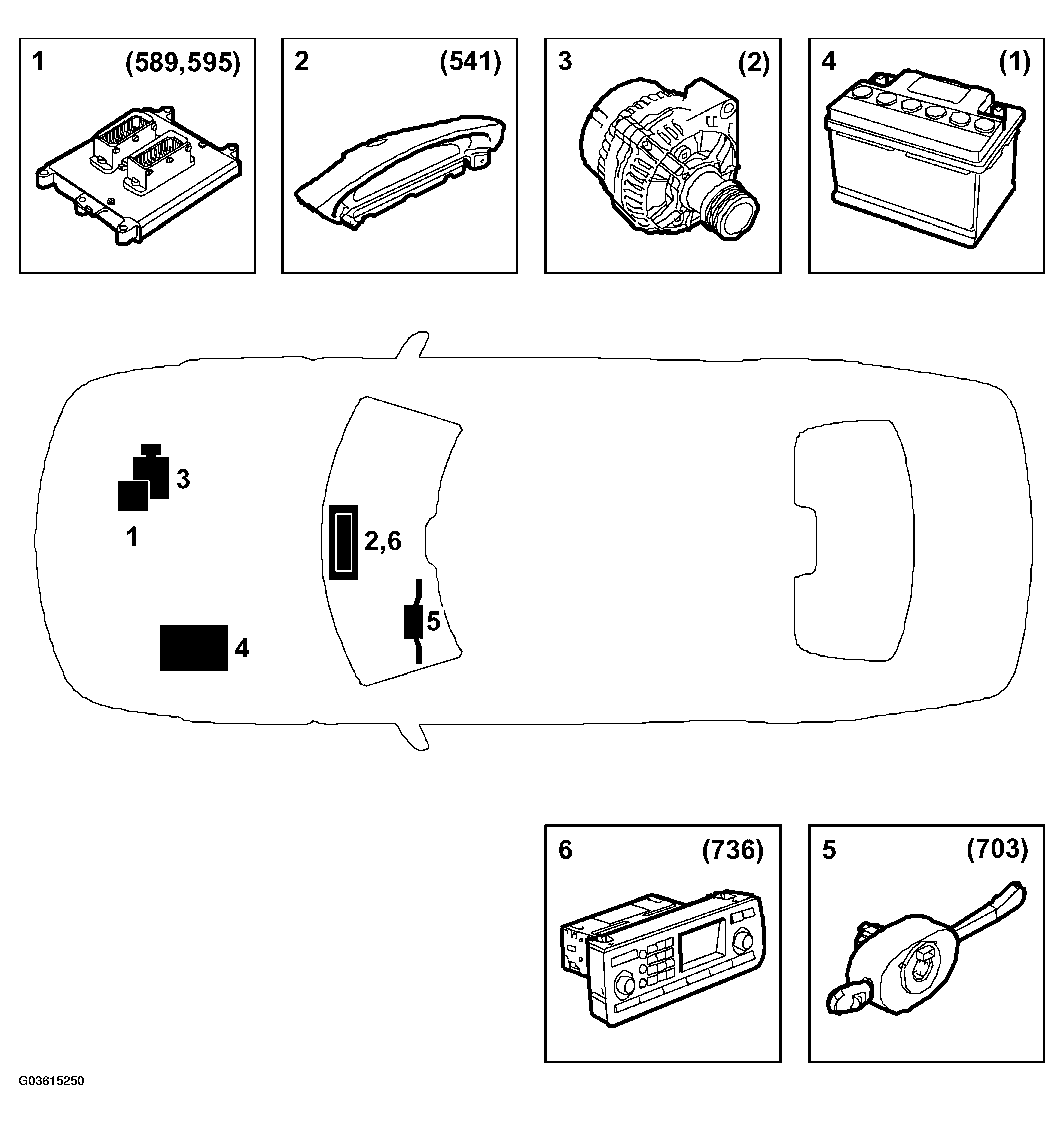

Fig 1: Identifying Main Components
G03615250Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Engine Control Module (ECM)
  2. SID (541)
  3. Generator (2)
  4. Battery (1)
  5. Column Integration Module, CIM (703a)
  6. Control panel, infotainment, ICM (736)
