Home › Saab › 2003 › 9-3 Vector, Standard › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Pressure sensor, charge air (603) › T7

Pressure sensor, charge air (603): T7

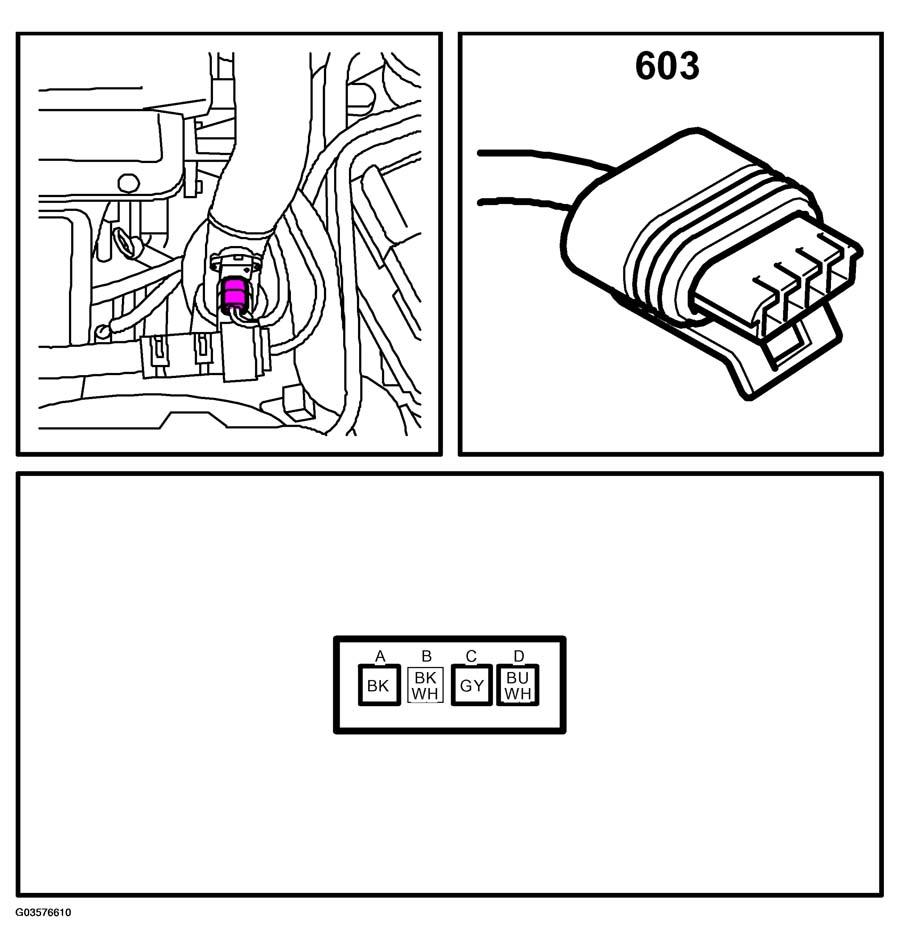

Fig 1: Identifying Charge Air Pressure Sensor Connector Pinouts - T7
G03576610Courtesy of SAAB-SCANIA OF AMERICA, INC.
