DTC P0102: Mass Air Flow Circuit. Low Input.
›
Notes
DTC P0102: Mass Air Flow Circuit. Low Input.: Notes

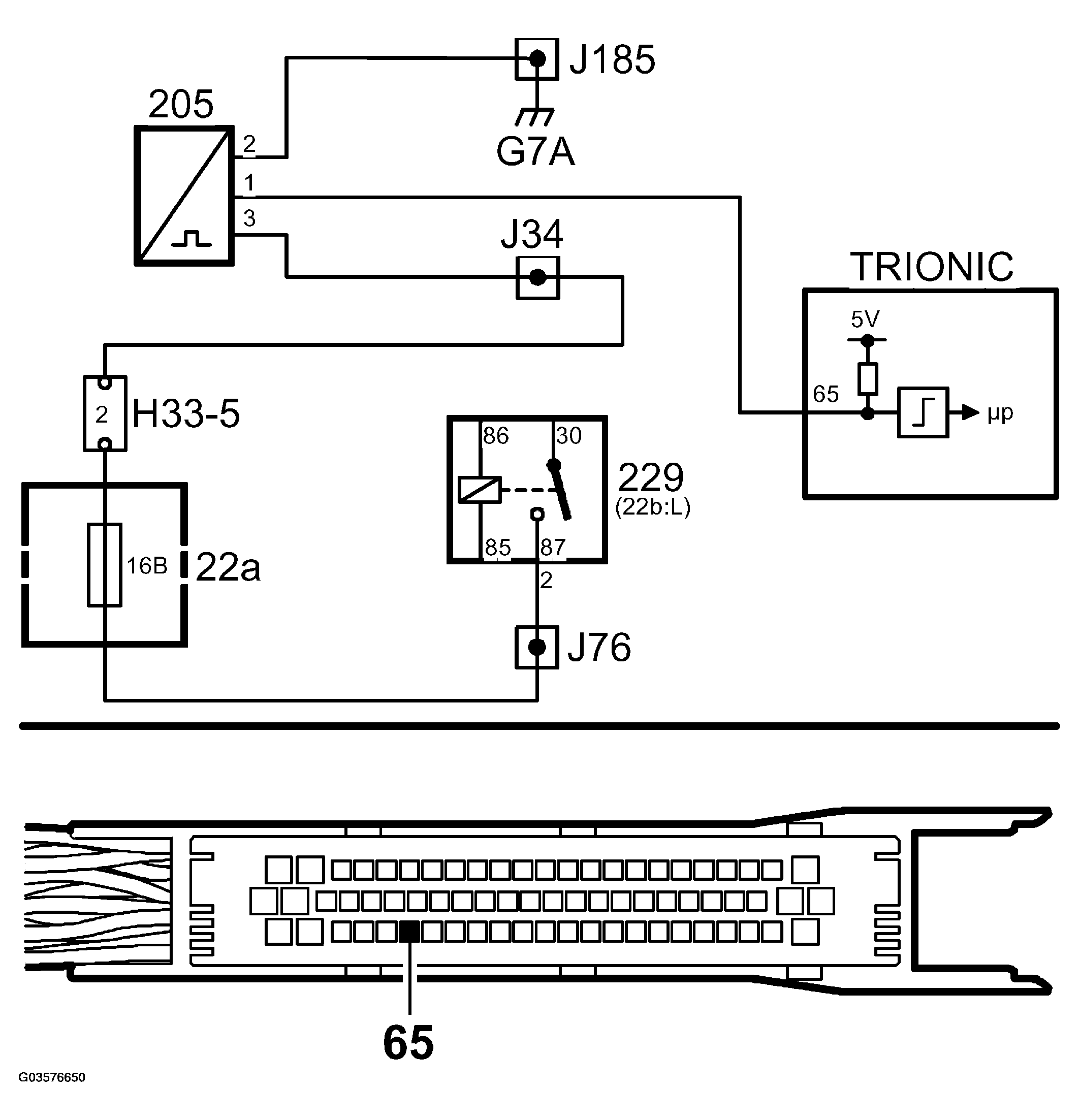

Fig 1: Mass Air Flow Circuit Diagram - Low Input
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
