TRIONIC T7 Fuel Control System
›
Fault Diagnosis Fault Codes
›
DTC P0119: Engine Coolant Temperature Circuit. Intermittent Open/Short.
›
Notes
DTC P0119: Engine Coolant Temperature Circuit. Intermittent Open/Short.: Notes

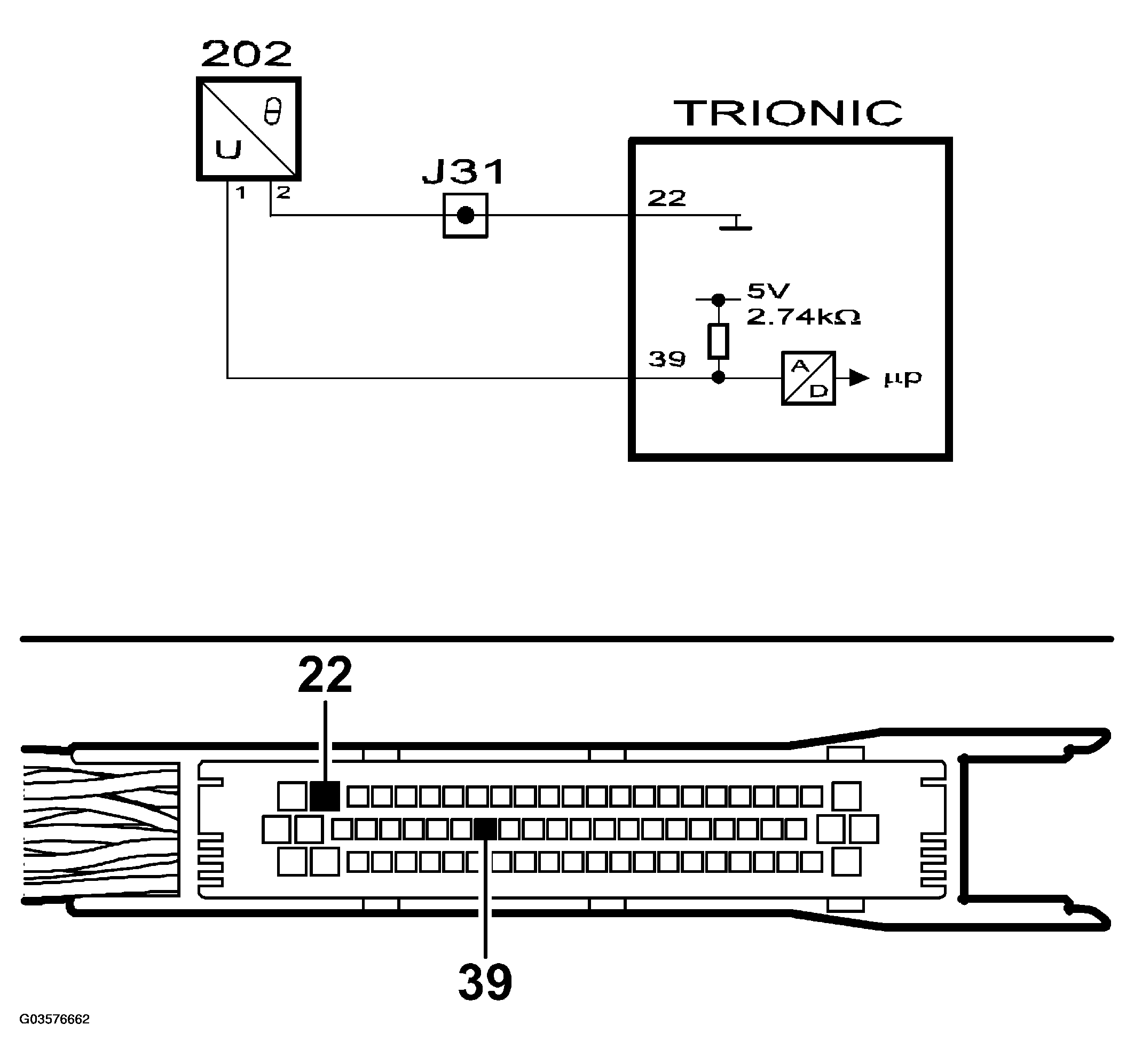

Fig 1: Engine Coolant Temperature Circuit Diagram - Intermittent Open/Short
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
