DTC P1662: Charge Air Control Valve Circuit. Open/Short to Ground.: Notes

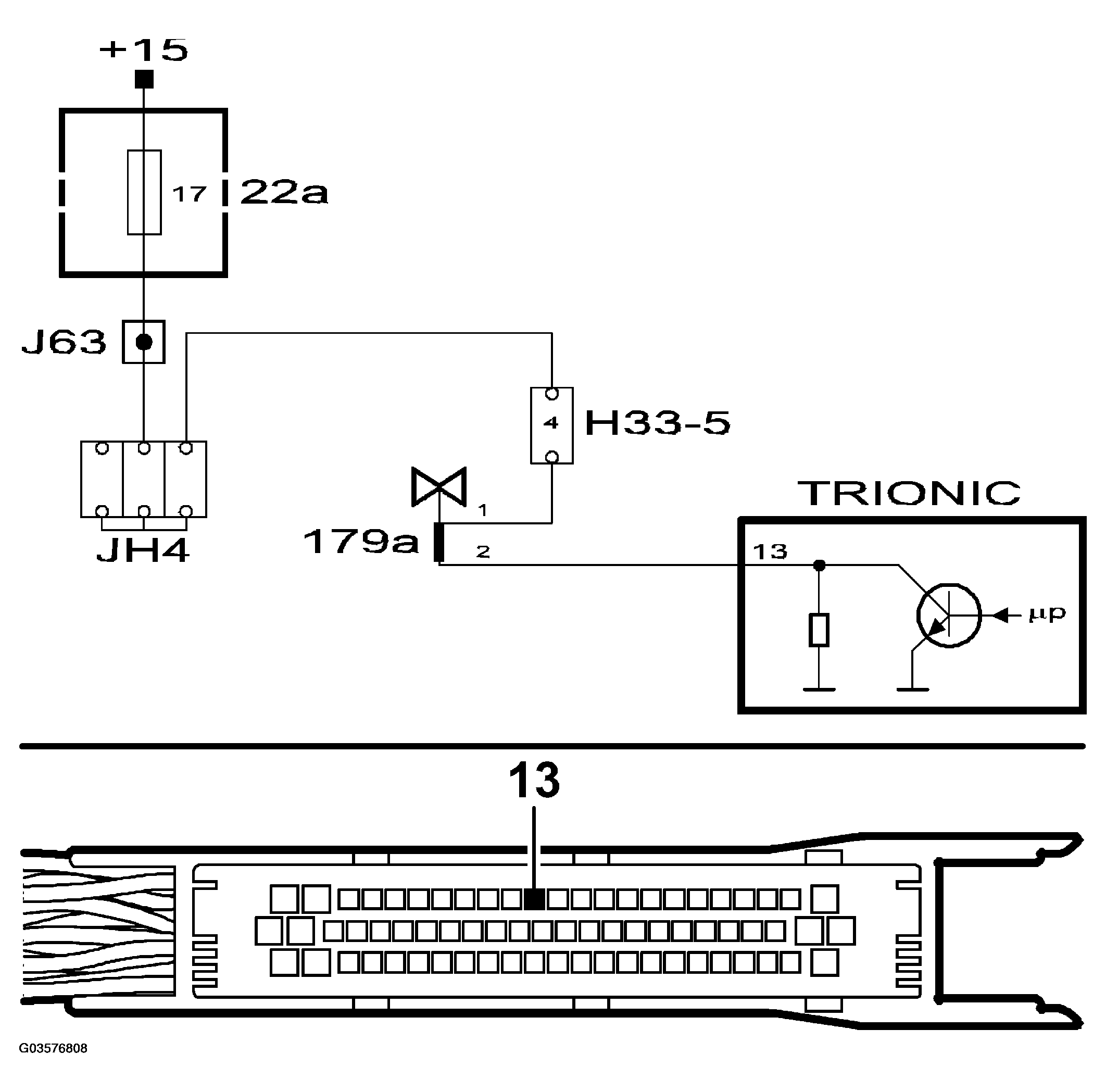

Fig 1: Charge Air Control Valve Circuit Diagram - Open/Short To Ground
G03576808Courtesy of SAAB-SCANIA OF AMERICA, INC.
