Level sensor: Refitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

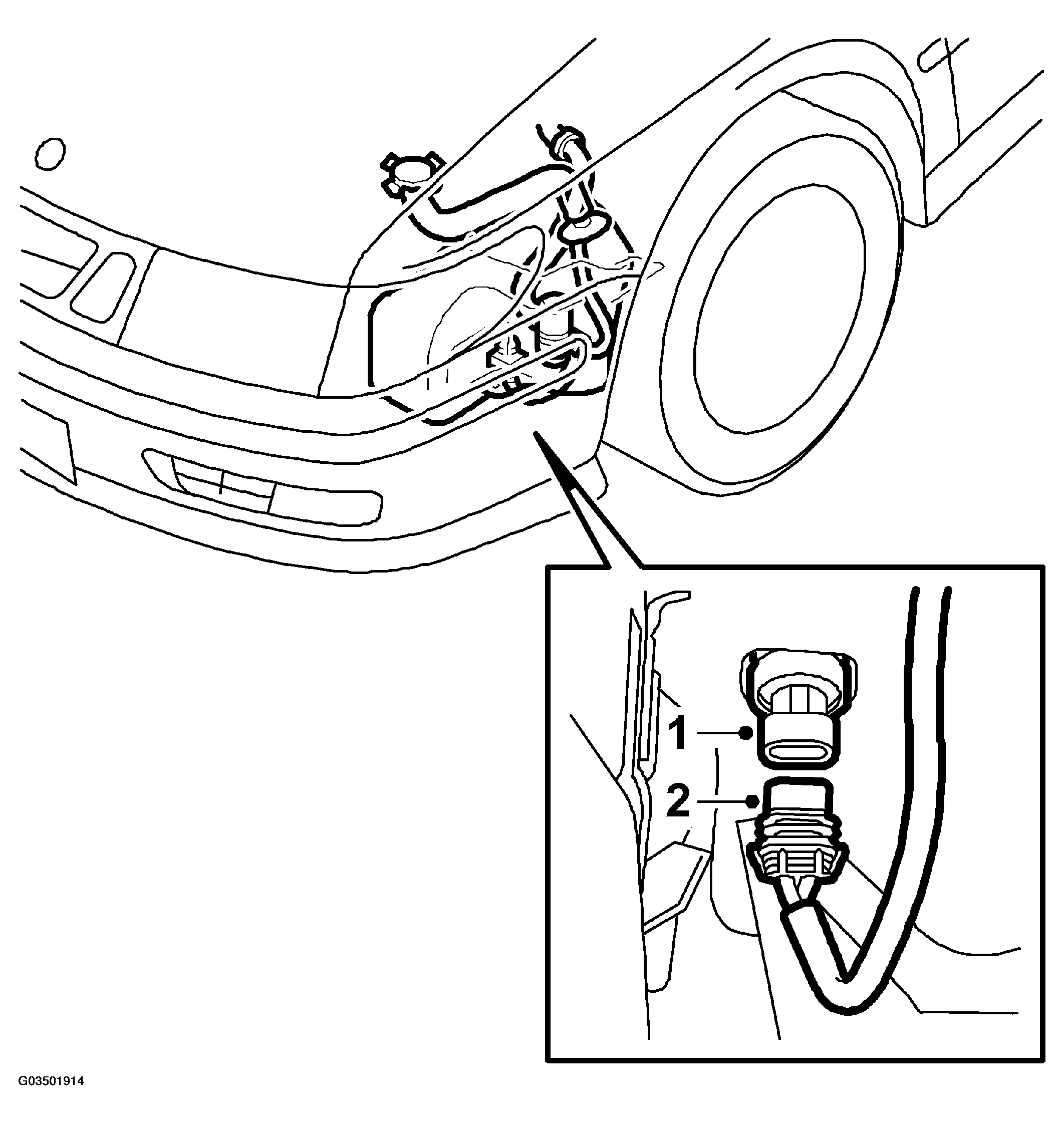

Fig 1: Illustration For Steps 1-2
G03501914
  1. Press the level sensor into the washer fluid reservoir with the float hanging down.
  2. Plug in the connector.
  3. Refit the wing liner (3 screws).
  4. Lower the car.
  5. Fill with washer fluid
