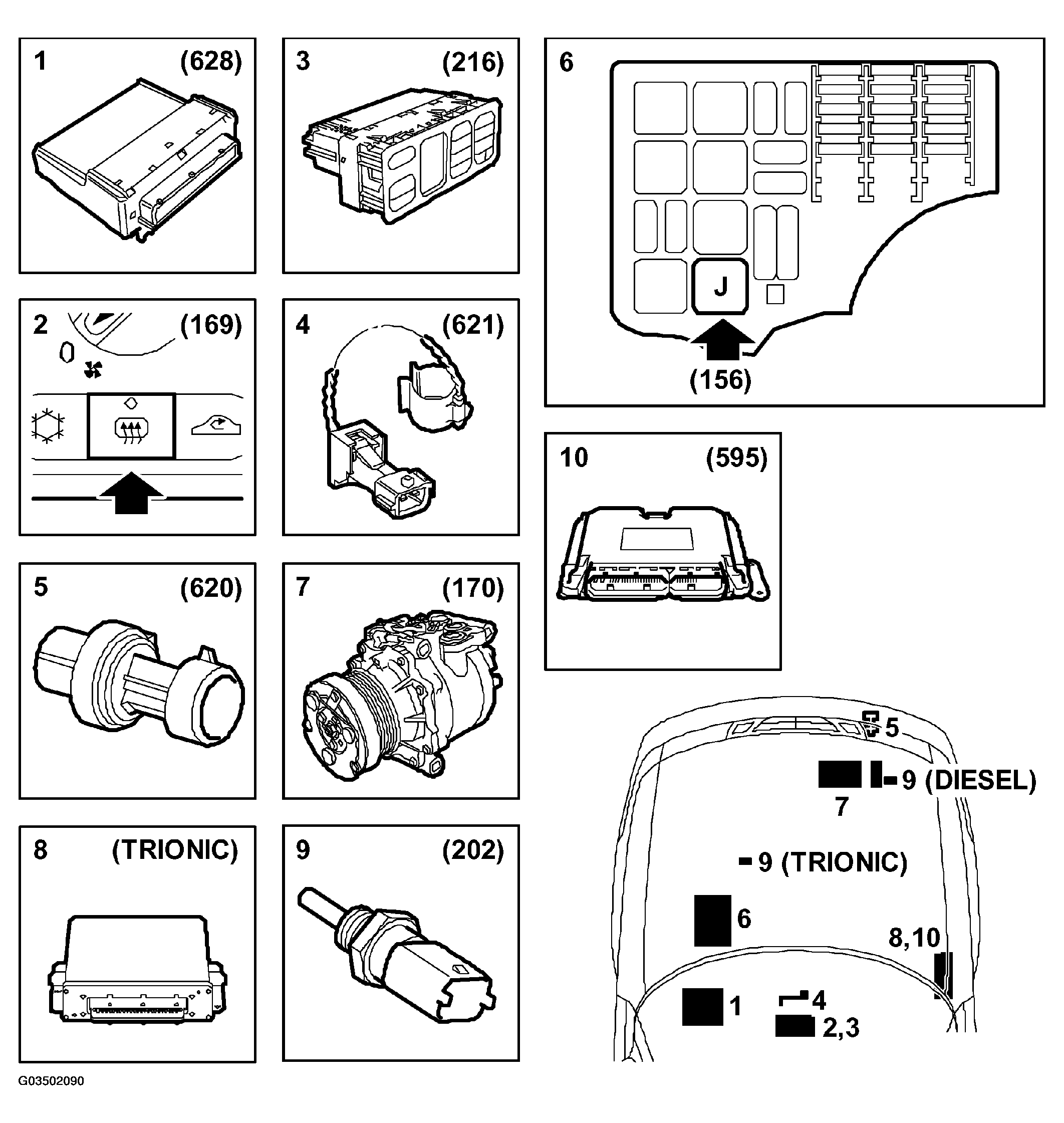

Fig 1: Identifying Main Components (A/C Function)
G03502090Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, DICE (628)
  2. Switch, A/C (169)
  3. Control module, ACC (216)
  4. Temperature sensor, A/C evaporator (621)
  5. Pressure sensor, A/C (620)
  6. Relay, A/C compressor (156)
  7. Compressor, A/C (170)
  8. Engine management system, petrol (430a, 589a)
  9. Engine coolant temperature sensor (202)
  10. Engine management system, diesel (595)
  11. Engine coolant temperature sensor (45)
