Control module
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

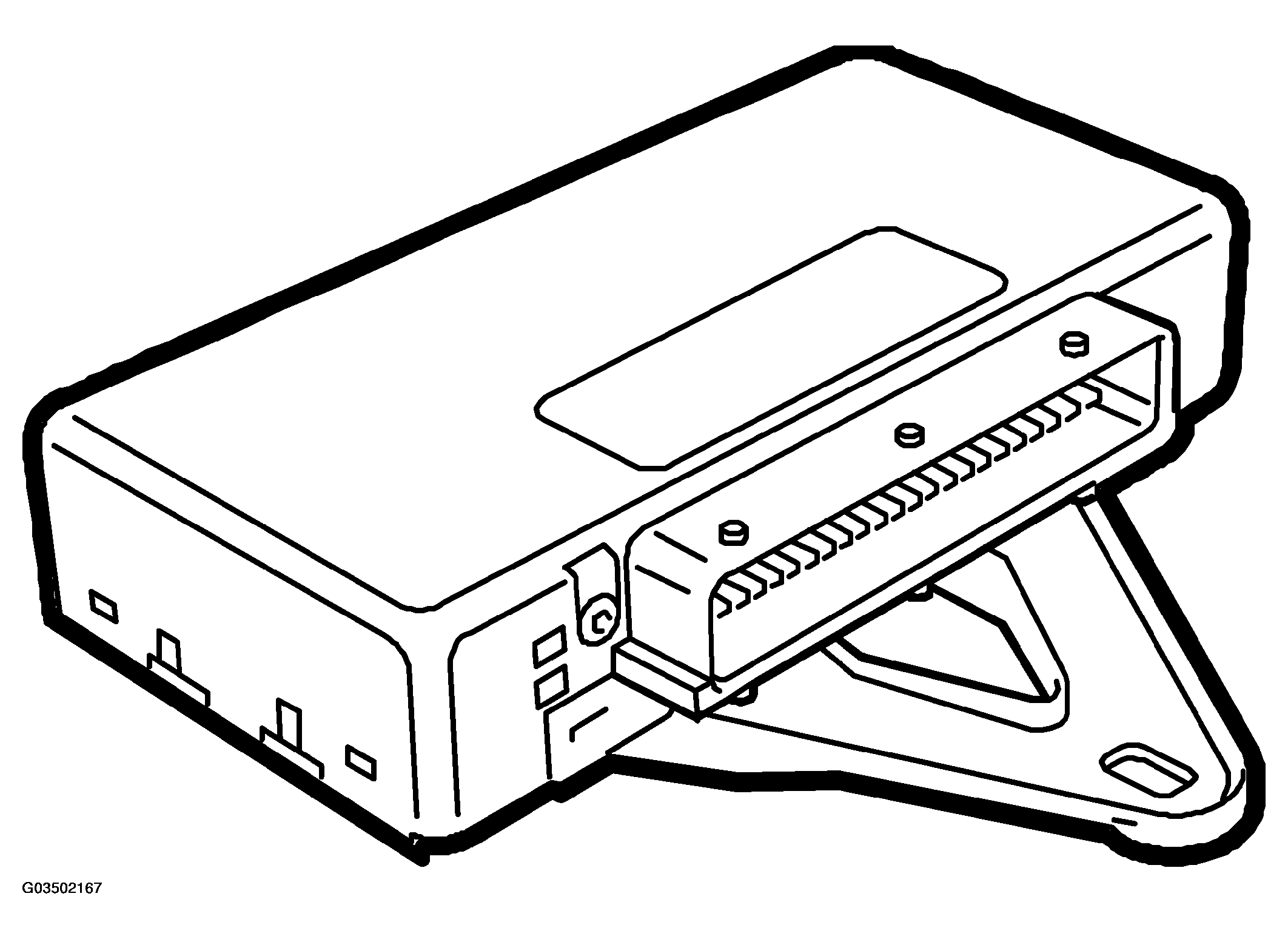

CONTROL MODULE TECHNICAL DATA
| Location | Under left-hand front seat, screwed to the floor | |
|---|---|---|
| Number of pins | 70 | |
| Power supply +30 | Pin No. | 43 |
| Power supply +15, logic/key position | Pin No. | 16 |
| Power supply +B, logic/key position | Pin No. | 17 |
| Power ground | Pin No. | 70 |
| Signal ground | Pin No. | 37 |
| Instrument bus, I-BUS (+) | Pin No. | 38 |
| Instrument bus, I-BUS (-) | Pin No. | 15 |
