Control module inputs

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

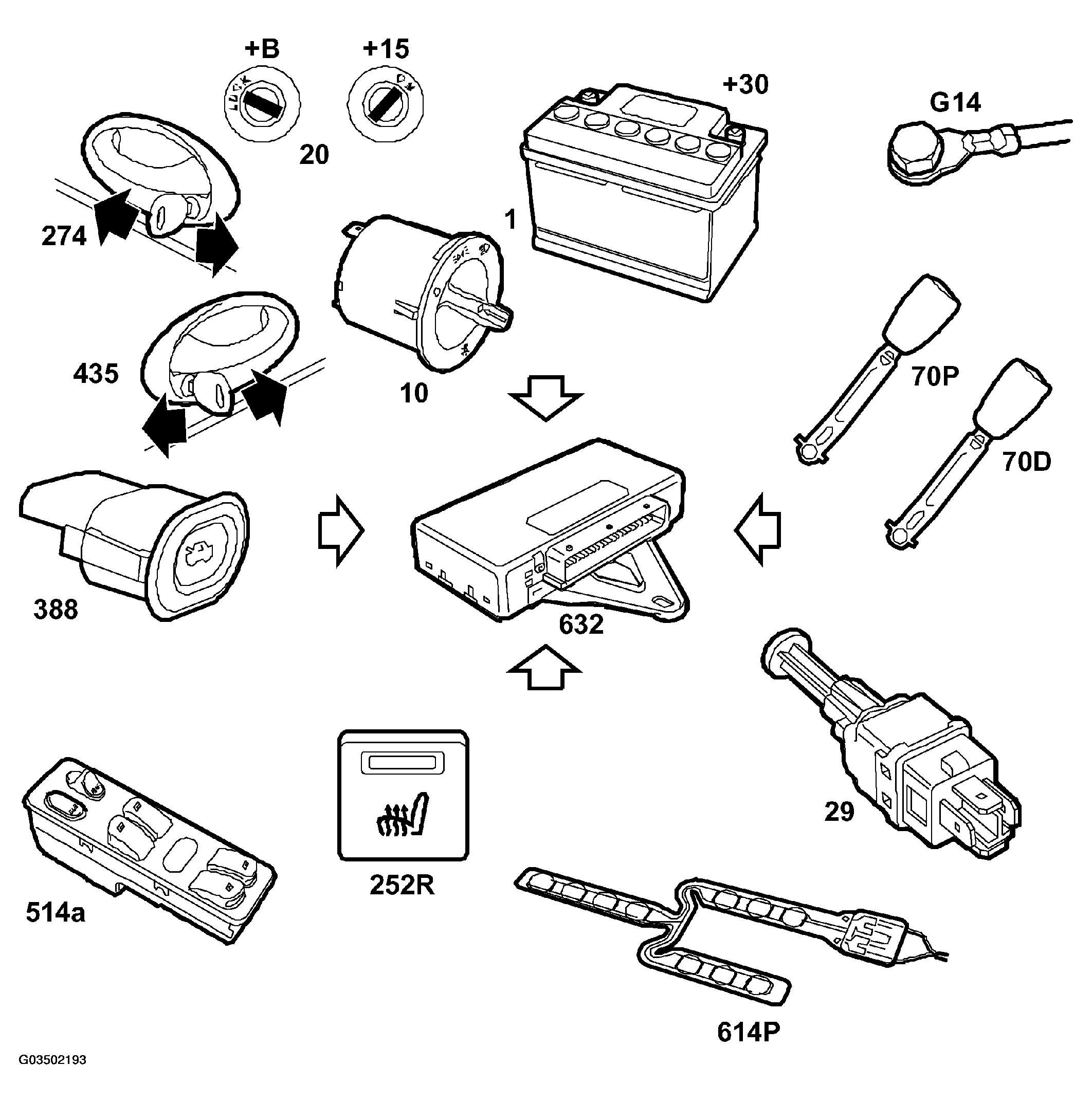

Fig 1: Identifying Control Module Inputs (Internal)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Power supply +B (20)
Power supply +15 (20)
Power supply +30 (1)
Power ground (G14)
Signal ground (G14)
Lamps, parking lights rear left/right, power supply from switch (10)
Lamps, brake lights, power supply (29)
Seat belt switch, driver (70D)
Seat belt switch, passenger (70P)
Sensor for occupied seat cushion, front passenger (614P)
Switch, heated rear seat, request (252R)
Switch, simultaneous closure central locking system (514a)
Central locking system, driver's door locking button (184D)
Switch, luggage compartment unlocking (388)
Central locking system, power supply (25/22A)
Microswitch, central locking system, driver's door locking/unlocking with key (274)
Microswitch, central locking system, passenger door locking/unlocking with key (435)

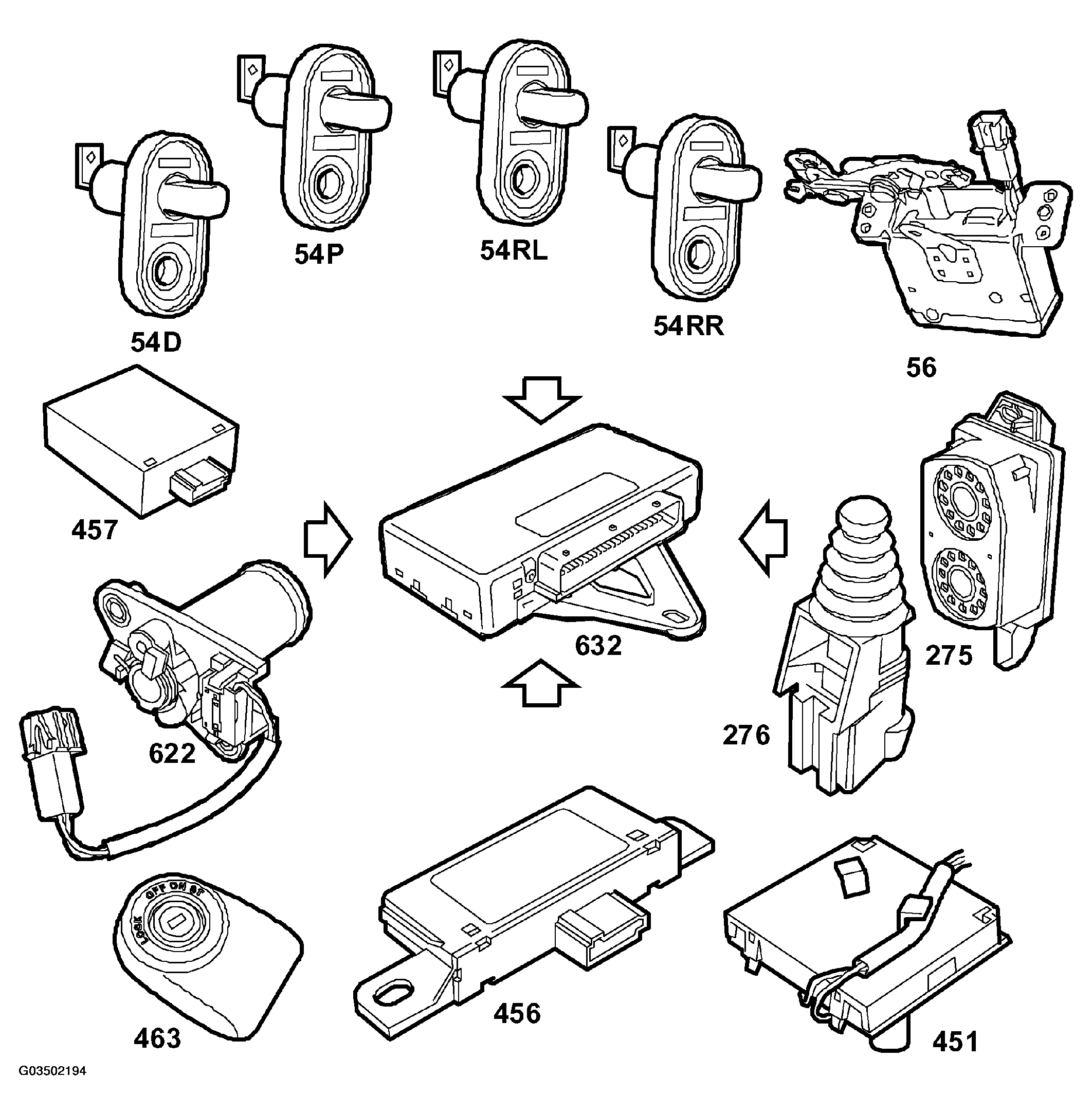

Fig 1: Identifying Control Module Inputs (External)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Door switch, front left (54D)
Door switch, front right (54P)
Door switch, rear left (54RL)
Door switch, rear right (54RR)
Bonnet switch, anti-theft alarm (276)
Switch, luggage compartment illumination 3D/5D (56)
Switch, luggage compartment illumination, convertible (56)
Glass breakage sensor (451)
Tilt sensor (457)
Antenna, remote control, central locking system (456)
Antenna unit, immobilizer (463)
Microswitch, luggage compartment lock (622)
Siren, anti-theft alarm (275)
