To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

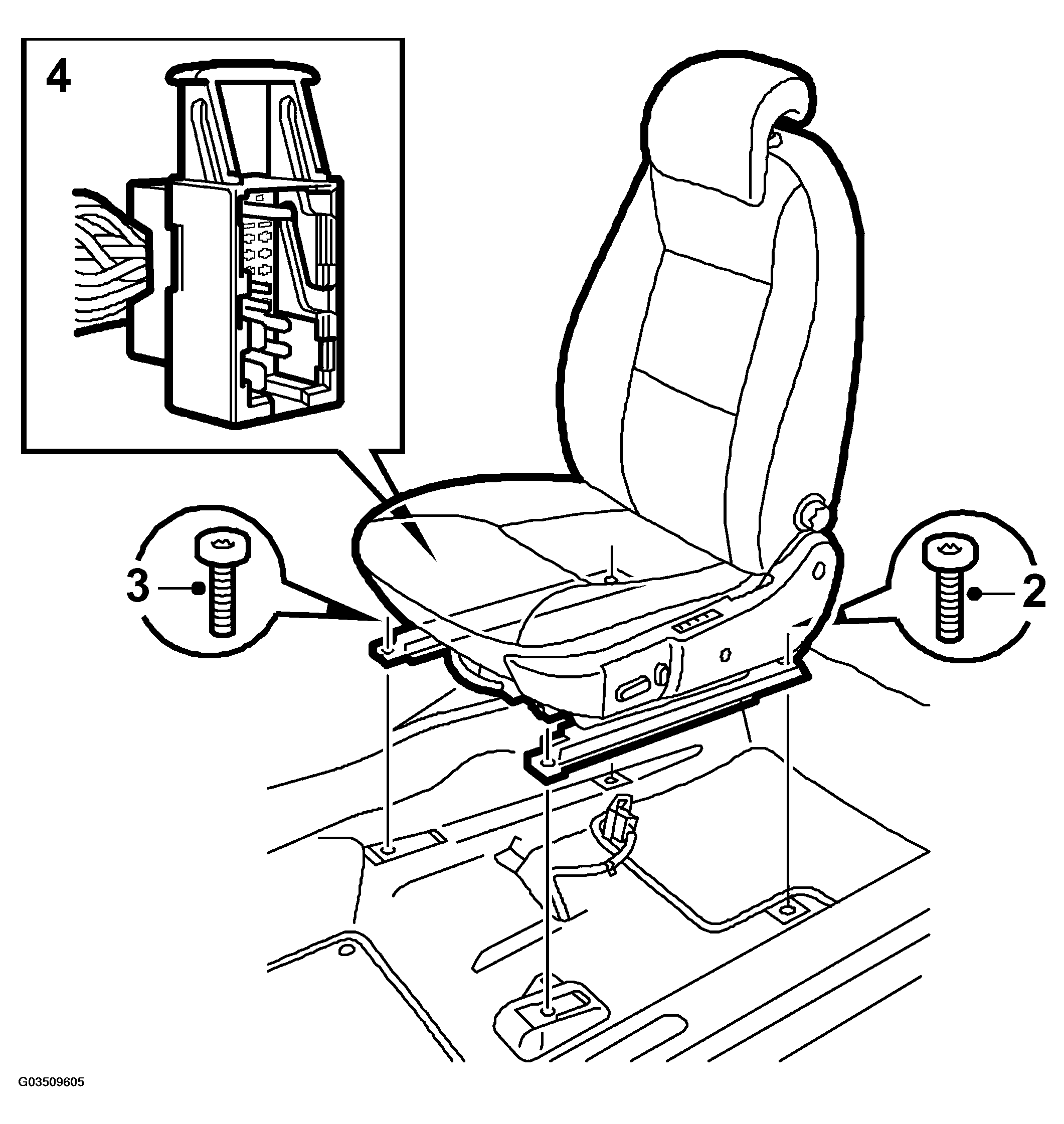

Fig 1: Illustration For Steps 2-3
G03509605Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Move the seat forward as far as possible and raise it to its highest position.

    If the seat can not be operated lengthwise, it must be emergency operated  in order to remove it.

  2. Undo the rear of the seat, 2 bolts.
  3. Slide the seat back and undo the 2 front bolts.
  4. Tip the seat, undo the cable tie and unplug the 29-pin connector under the seat.
  5. Lift out the seat and detach the belt from the seat where necessary.
WARNING: Manual front seat, easy entry:  Do not release the legroom adjustment handle when the seat has been removed from the car as the seat rail could then spring rearwards and cause injury. Tipping the backrest forward will affect legroom adjustment.
