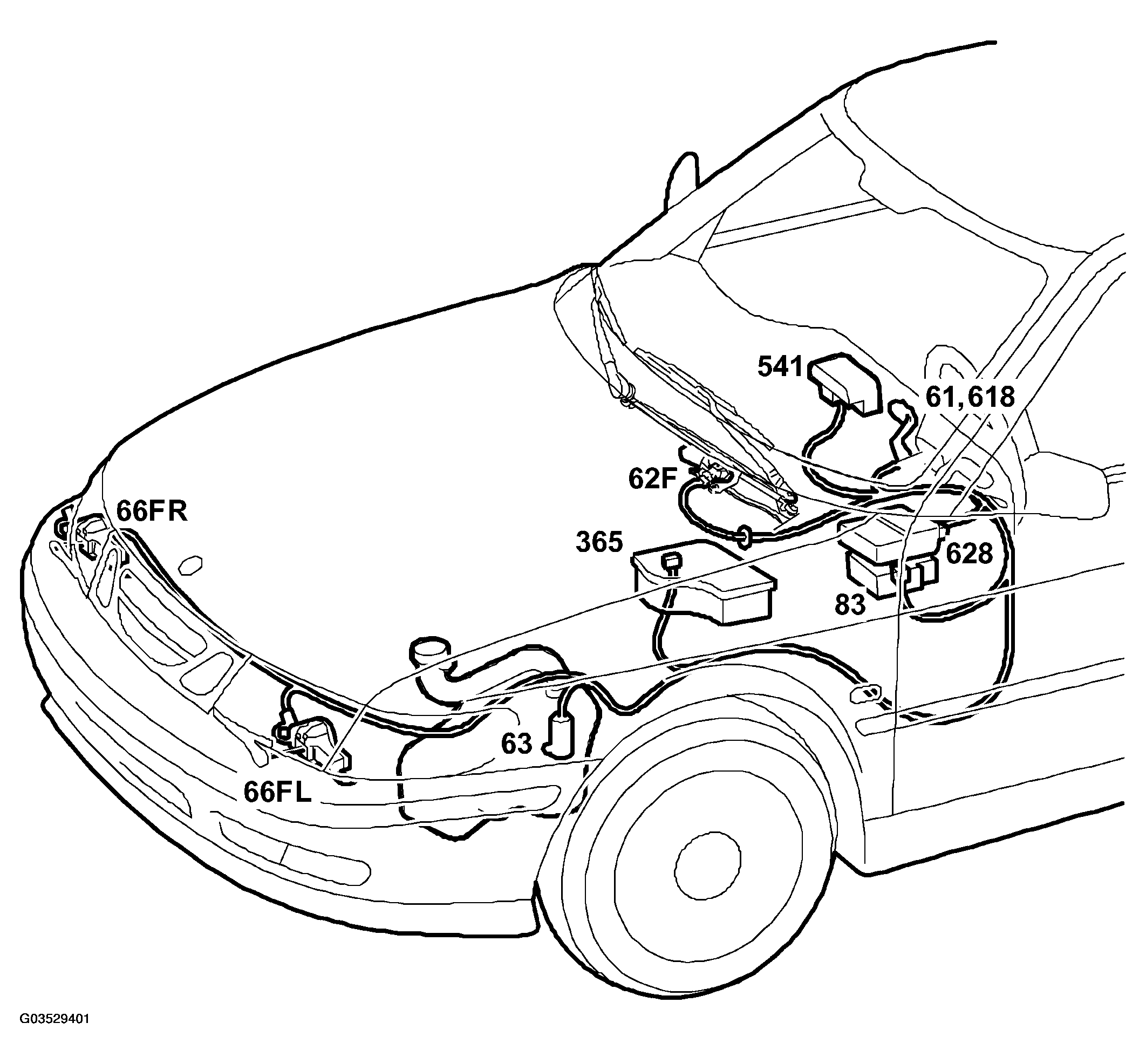

System Overview, Windscreen Wipers
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Windscreen wiper switch (61,618)
- Windscreen wiper motor (62F)
- Washer fluid pump (63)
- Headlamp wiper motor (66FR, 66FL)
- Relay, intermittent wiper (83)
- Relay, headlamp wipers (365)
- DICE (628)
- SID (541)
