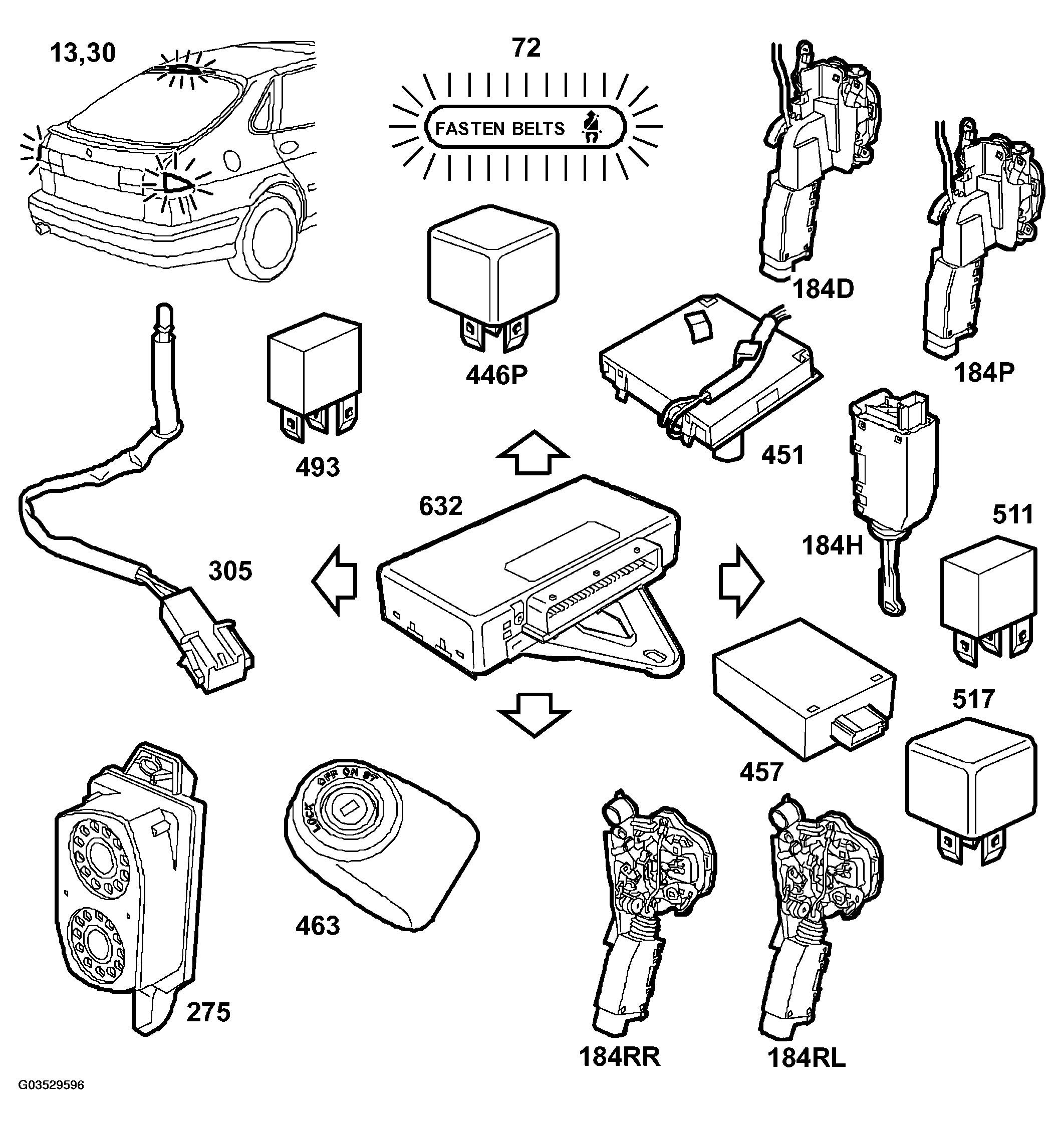

Control Module Outputs
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Lamps, brake lights, left/right (30RL, 30RR)
- Lamps, brake lights, high-level (30RC)
- Lamps, parking lights, rear left/right (13RL, 13RR)
- Warning lamp, seat belt, ground (72)
- Relay, heated rear seat. Ground (511)
- Relay, heated passenger seat. Ground (446P)
- Motor, central locking system, doors. Locking/unlocking (184D, 184P, 184RL, 184RR)
- Motor, central locking system, doors. Control voltage theft security locking (184D, 184P, 184RL, 184RR)
- Motor, central locking system, luggage compartment. Operating current (184H)
- Relay, luggage compartment opening (493)
- Antenna unit, immobilizer, power supply (463)
- Starting relay, immobilizer (517)
- Glass breakage sensor, power supply (451)
- Tilt sensor, power supply (457)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)
