Control Units

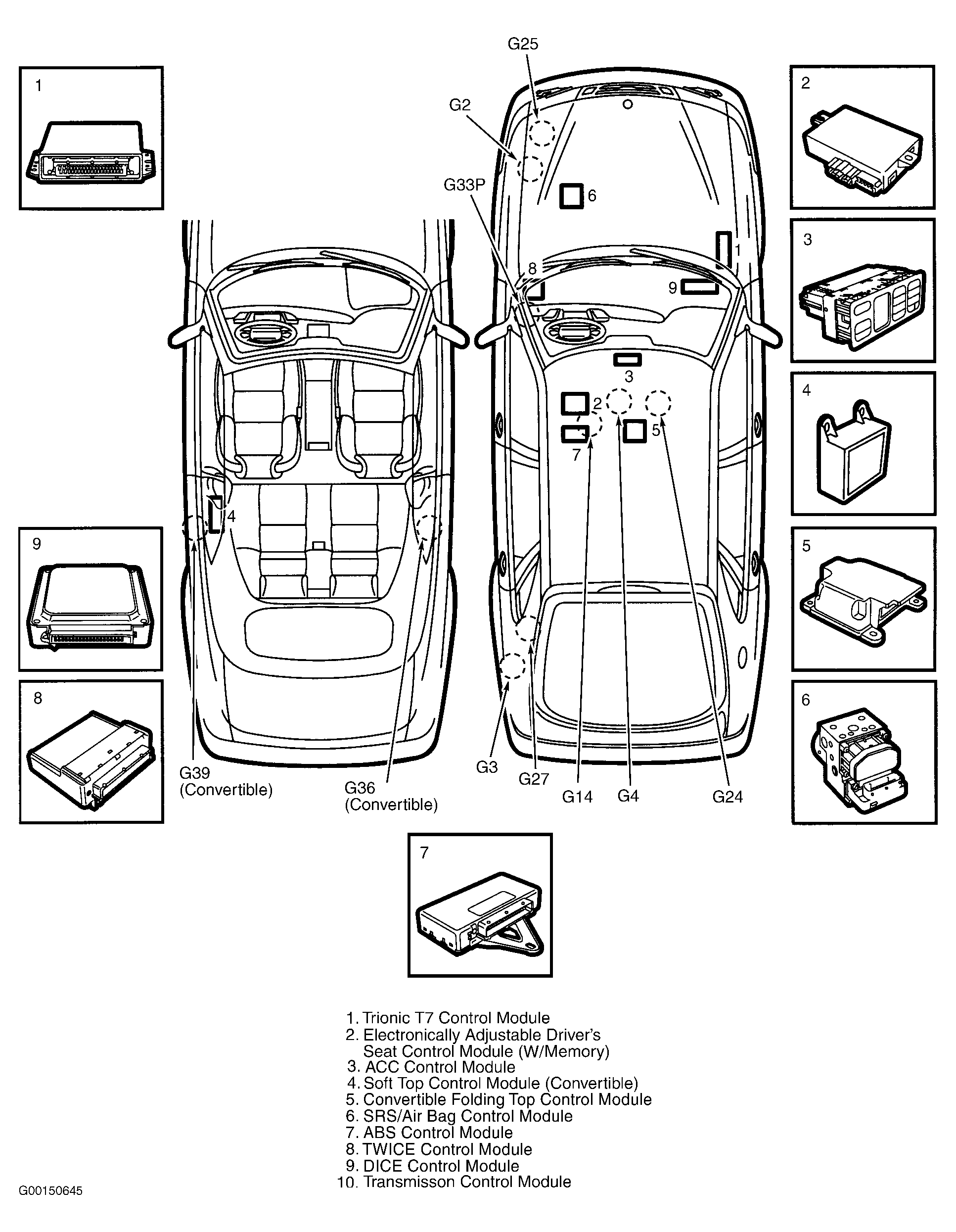

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | Integral with hydraulic unit, behind battery. See Figure. |
| ACC Control Module | Under radio. See Figure. |
| Convertible Folding Top Control Module | Under center console. See Figure. |
| DICE Control Module | Behind left side of dash, above dashboard main relay board. See Figure. |
| Electrically Adjustable Driver's Seat Control Module (W/Memory) | Under driver's seat cushion. See Figure. |

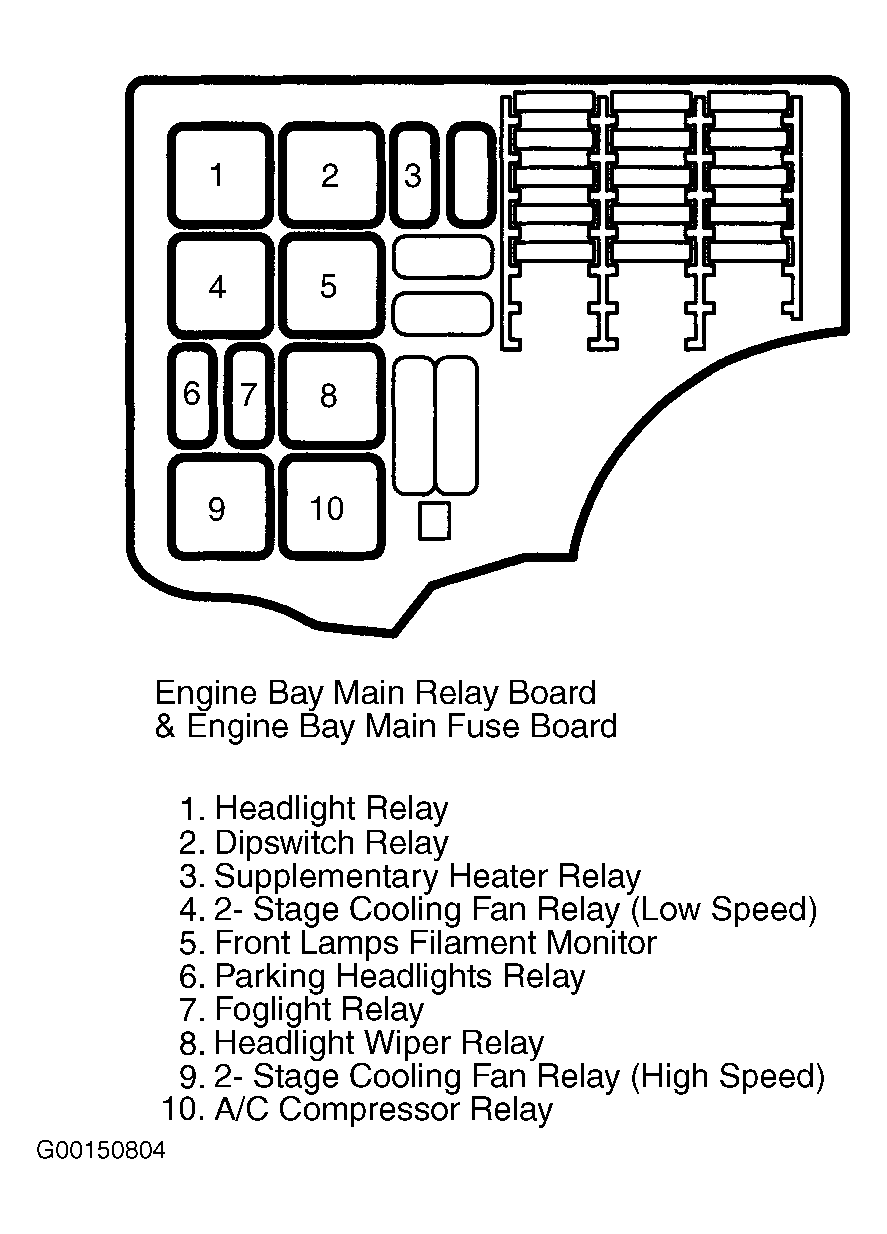

| Front Lamps Filament Monitor | On engine bay main relay board. See Figure. |
| Ignition Discharge Module | On rear of cylinder head. |
| Soft Top Control Module (Convertible) | Under left rear seat speaker. See Figure. |
| SRS/Air Bag Control Module | Under floor console, behind handbrake. See Figure. |
| Transmission Control Module | Behind right side of dash. See Figure. |
| Trionic T7 Control Module | Behind right kick panel. See Figure. |
| TWICE Control Module | Under driver's seat. See Figure. |
| Ventilation Fan Control Unit | Behind right side of dash. |
