Control module outputs, bus

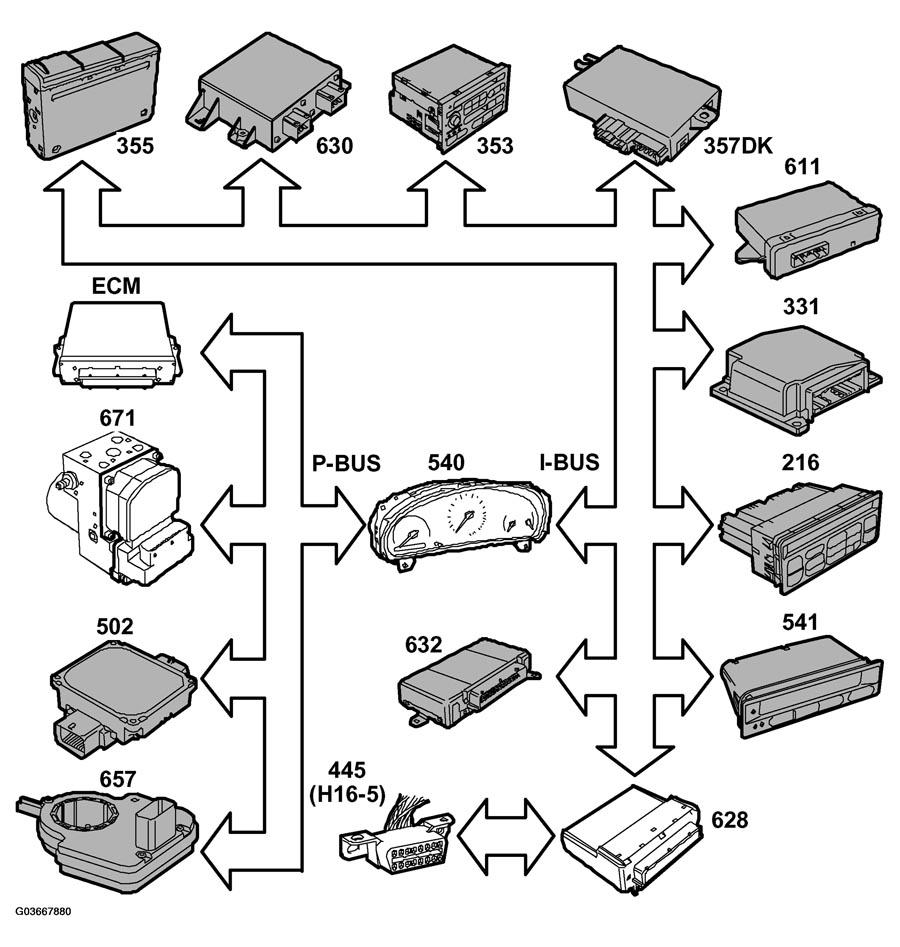

Fig 1: Identifying Control Module Outputs, Bus Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• TCS OFF/ESP OFF indicator lamp
• ABS warning lamp
• TCS/ESP indicator lamp
• Wheel speed out for all wheels
• ENGINE TORQUE REQUEST

See also BUS AND DIAGNOSTICS COMMUNICATION , CONTROL MODULE CONNECTIONS  .
