Fuel level sensor

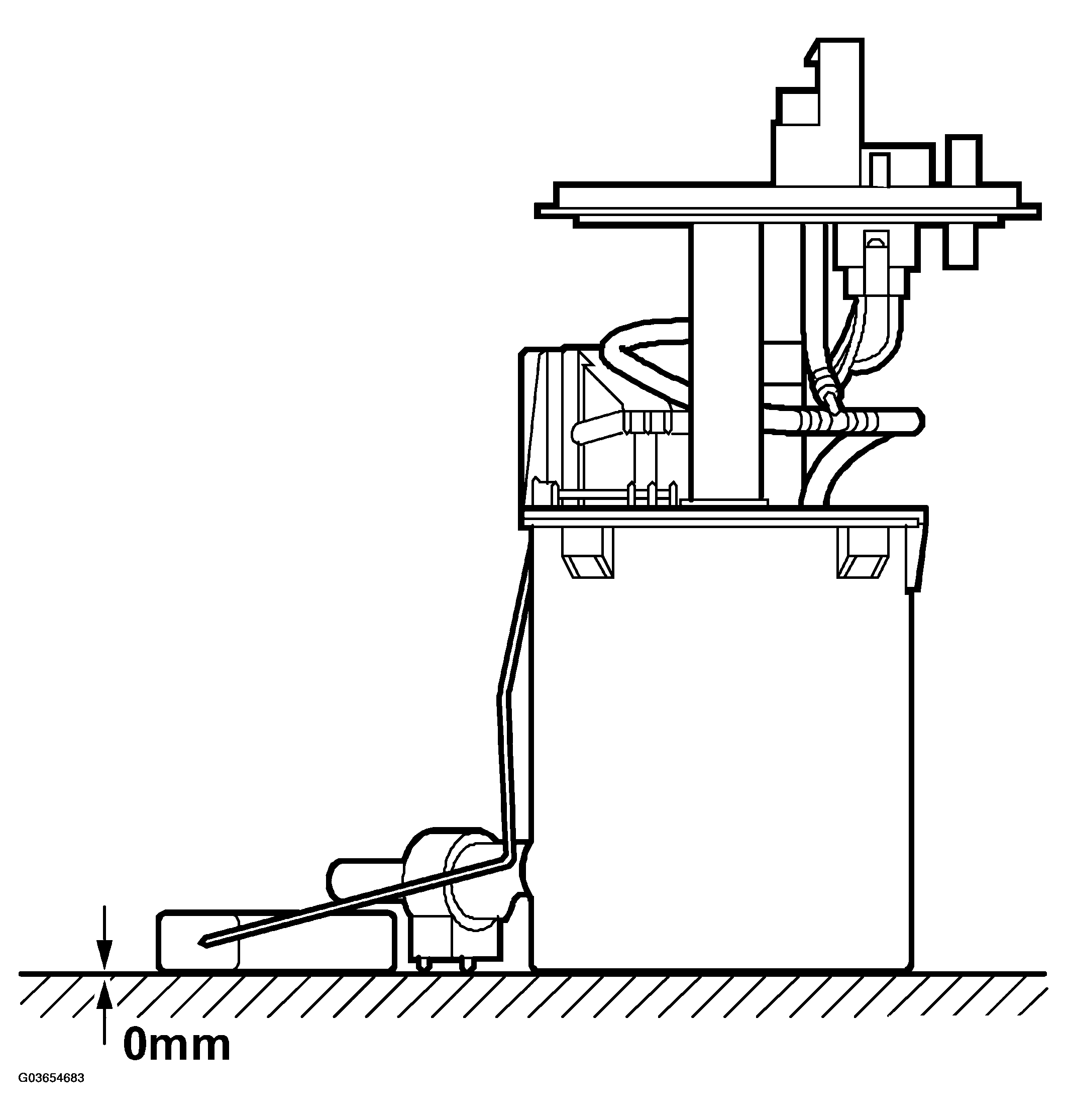

Fig 1: Identifying Fuel Level Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL LEVEL SENSOR - TECHNICAL DATA
Resistance, empty tank
Ohms
50+/-1.5
Resistance, full tank
Ohms
425+/-6.5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
