Injectors, flow capacity: V6

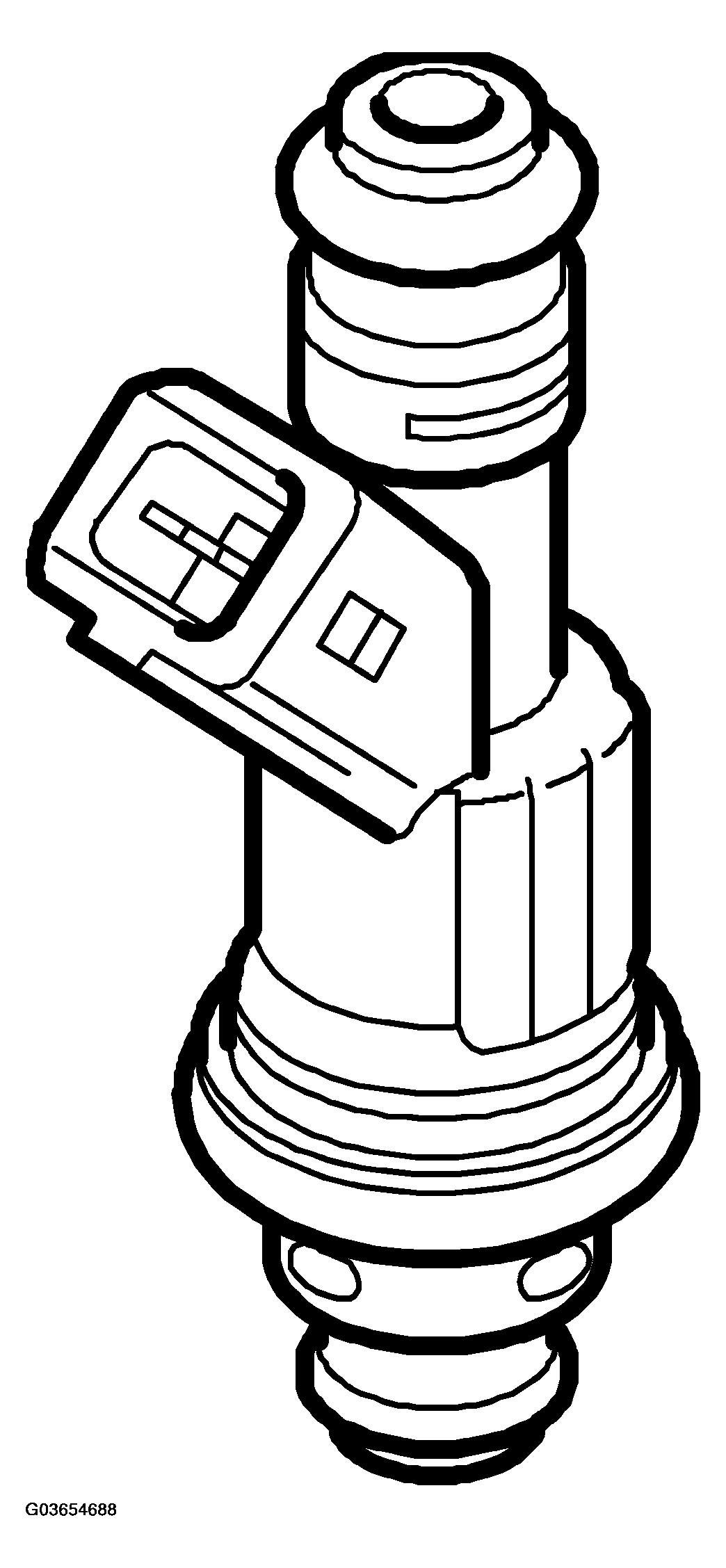

Fig 1: Identifying Injectors, Flow Capacity (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INJECTORS, FLOW CAPACITY (V6) - TECHNICAL DATA

		B308E
Flow capacity	ml/30s	109 +/- 4
Maximum permissible difference between injectors.	ml	8
