Sensor, output speed

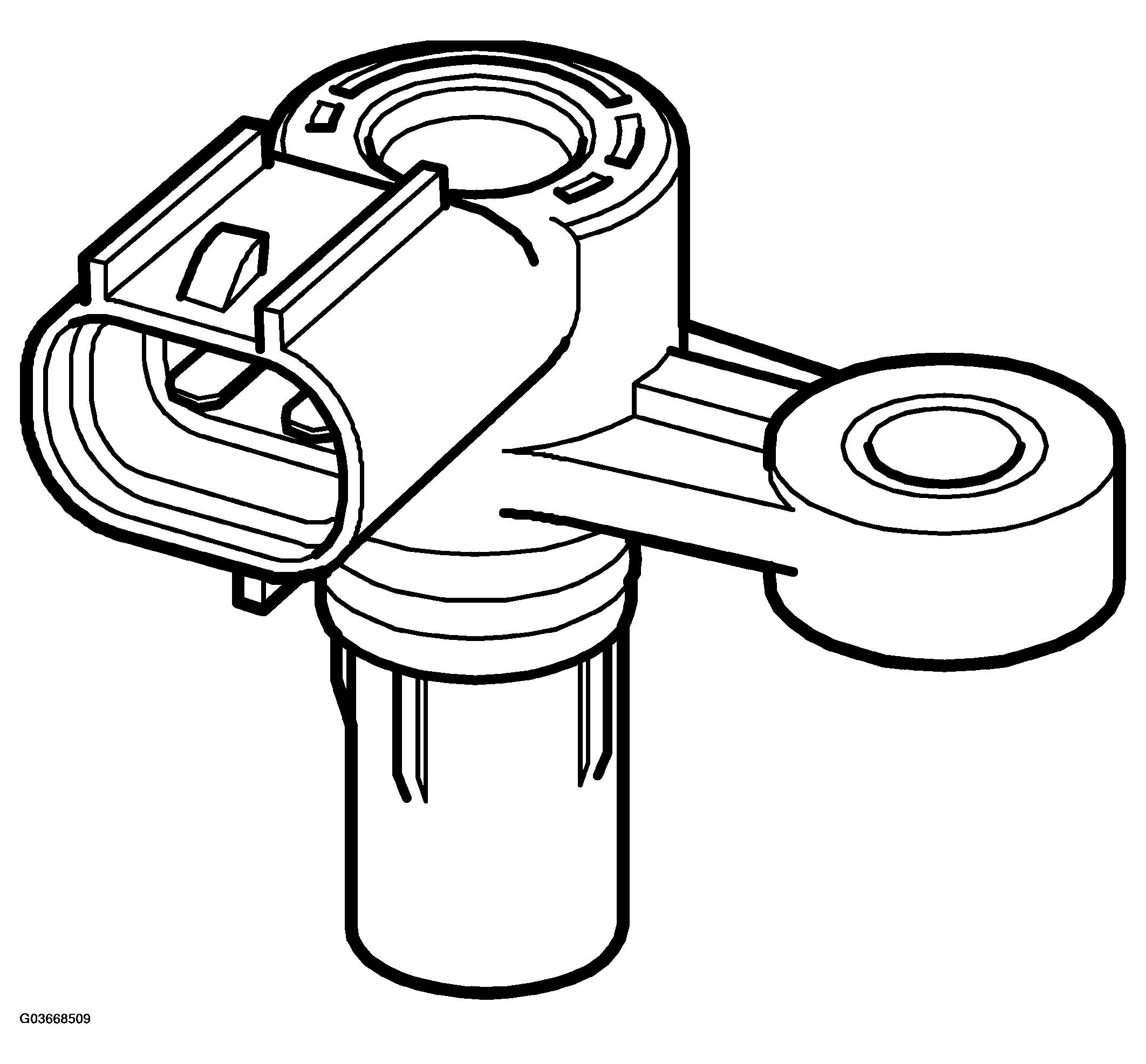

Fig 1: Identifying Sensor, Output Speed
G03668509Courtesy of SAAB-SCANIA OF AMERICA, INC.
OUTPUT SPEED SPECIFICATION

Location   On the transmission casing
Type   Hall sensor
Toothed wheel number of teeth 18
