Control module ground: Notes

The control module is grounded through pins 32 (A) and 23 (A) to grounding point G43. The grounding points are connected internally.

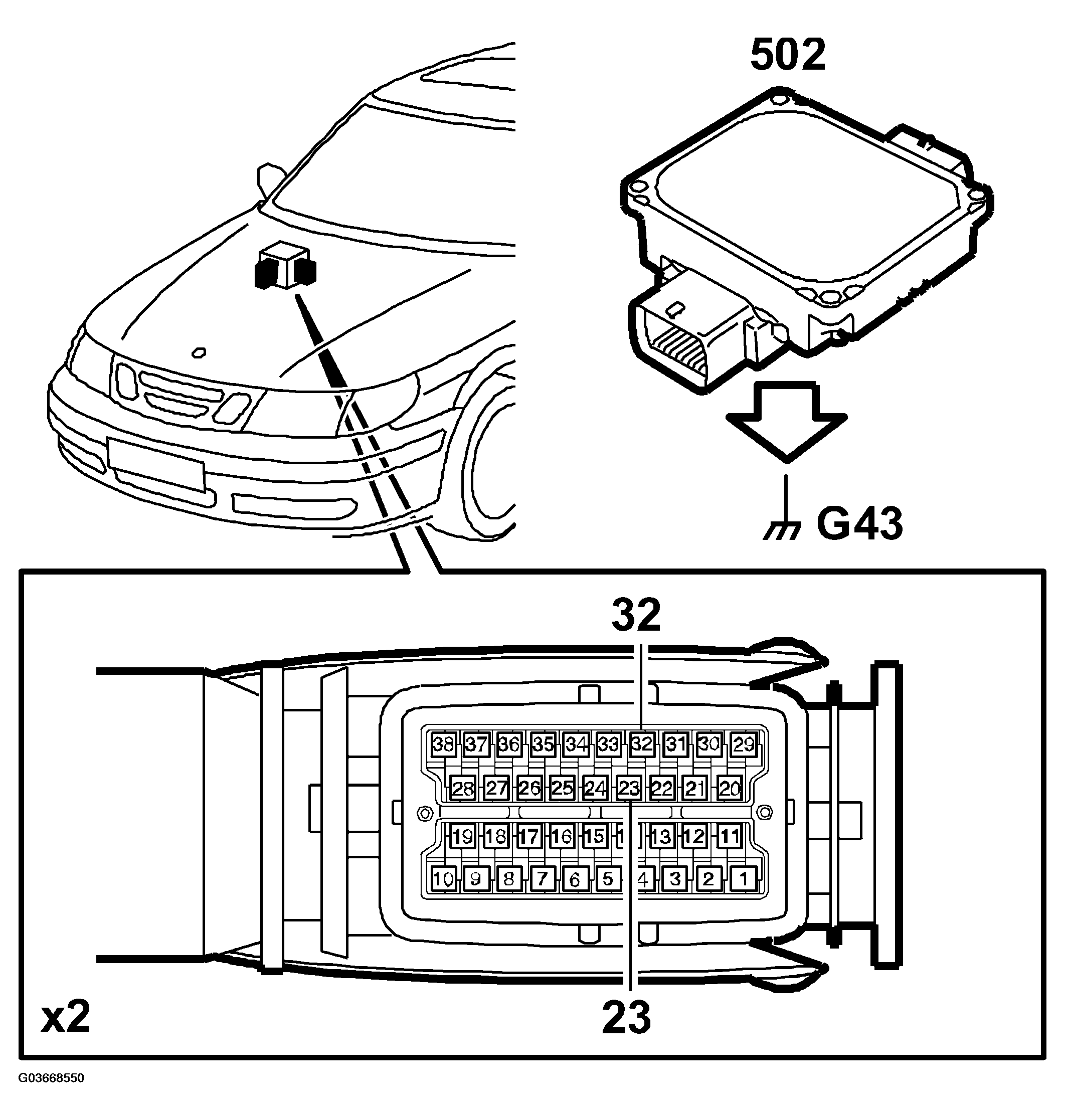

Fig 1: Identifying Communication Diagram Of Control Module Ground

Courtesy of SAAB-SCANIA OF AMERICA, INC.
