Control module inputs

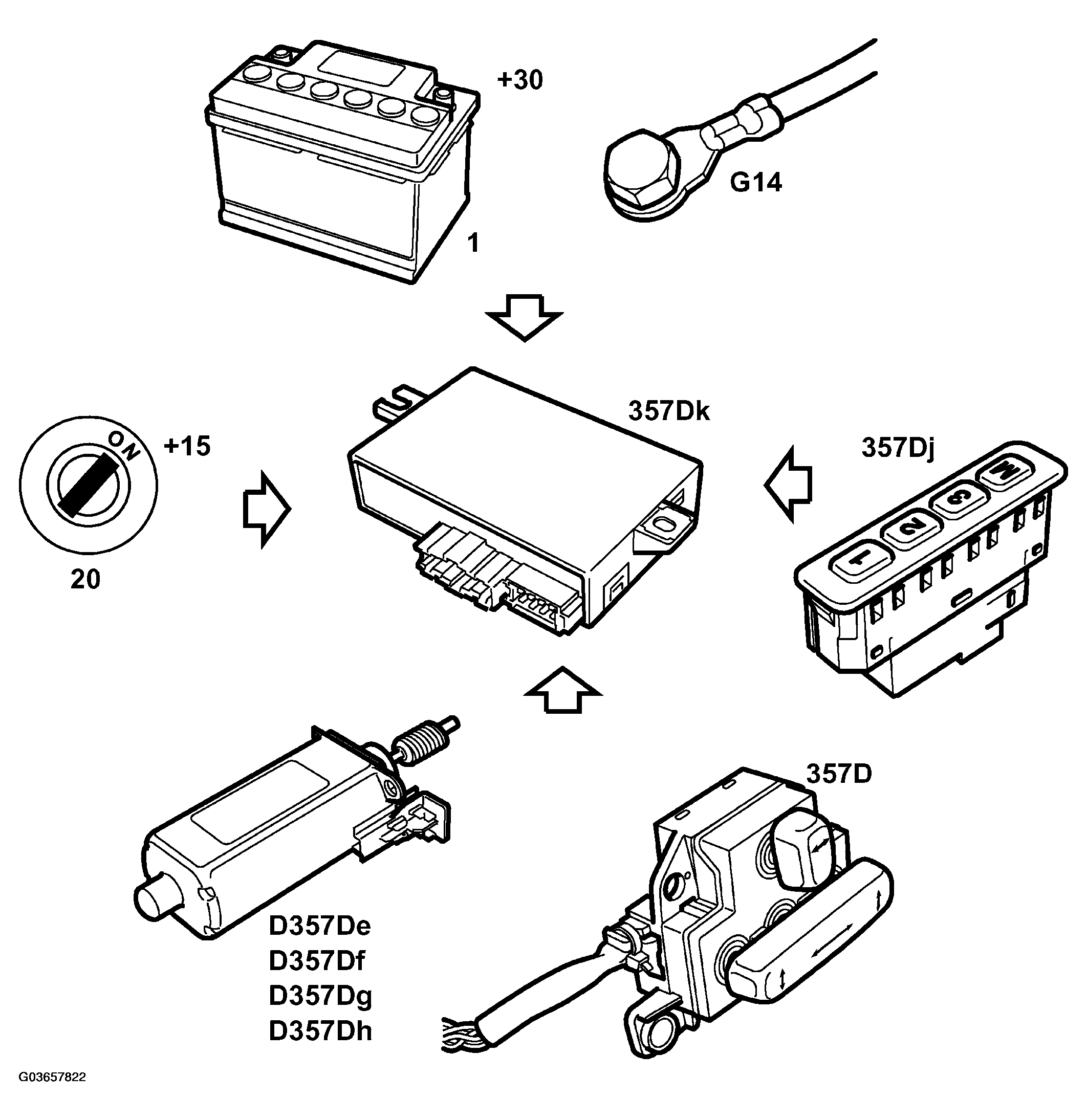

Fig 1: Identifying Control Module Inputs

G03657822

Courtesy of SAAB-SCANIA OF AMERICA, INC.

+15 power supply, see POWER SUPPLY .
+30 power supply, see POWER SUPPLY .
Ground, see GROUNDING .
Memory buttons (357Dj), see MEMORY BUTTONS .
Switch unit (367D), seat adjustment, see SWITCH UNIT .
Hall sensor (357De-Dh), seat adjustment, see HALL SENSOR .
