Technical Description
›
PSM Control module
›
Power supply
›
Notes
Power supply: Notes

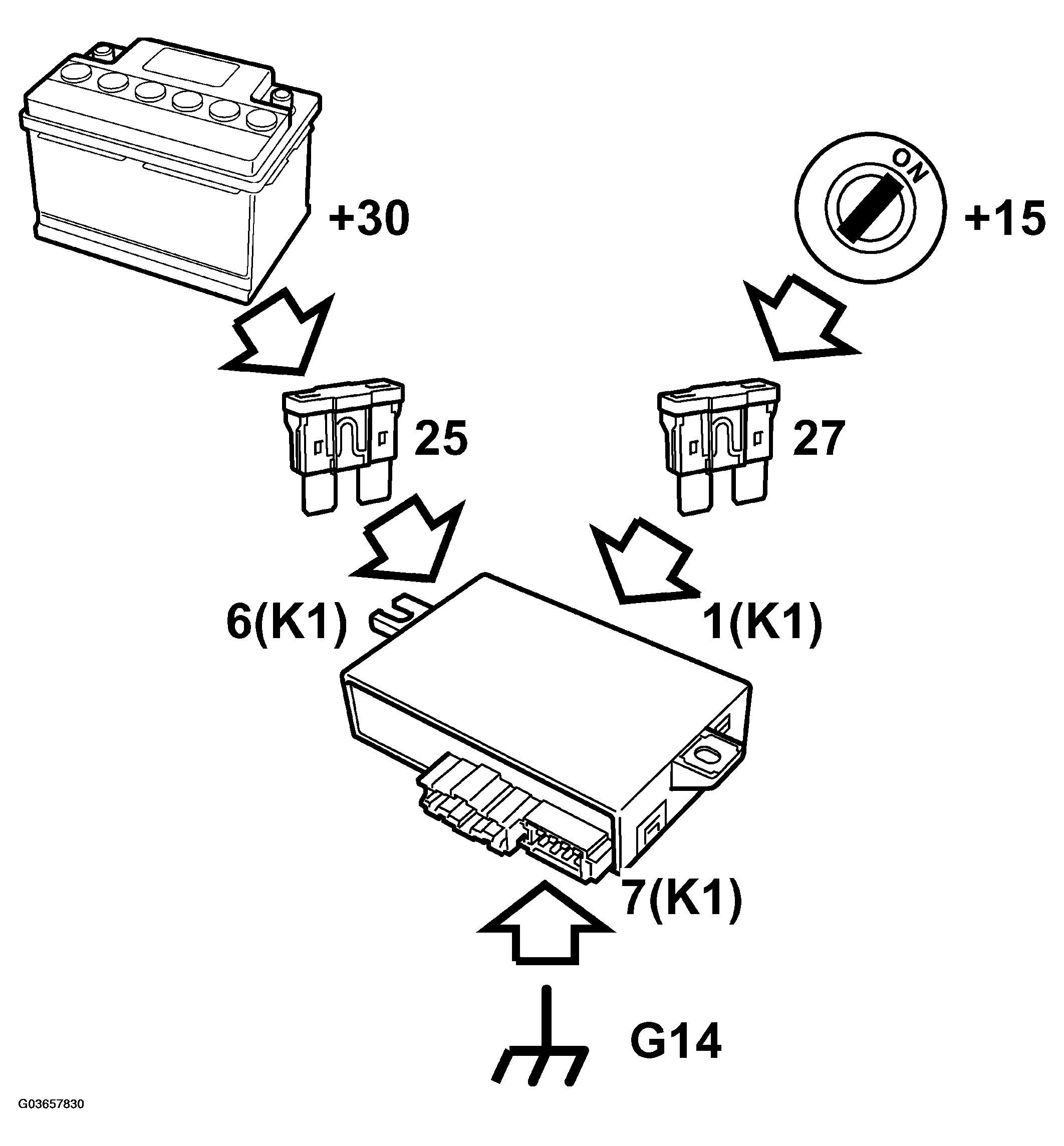

Fig 1: Identifying Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.

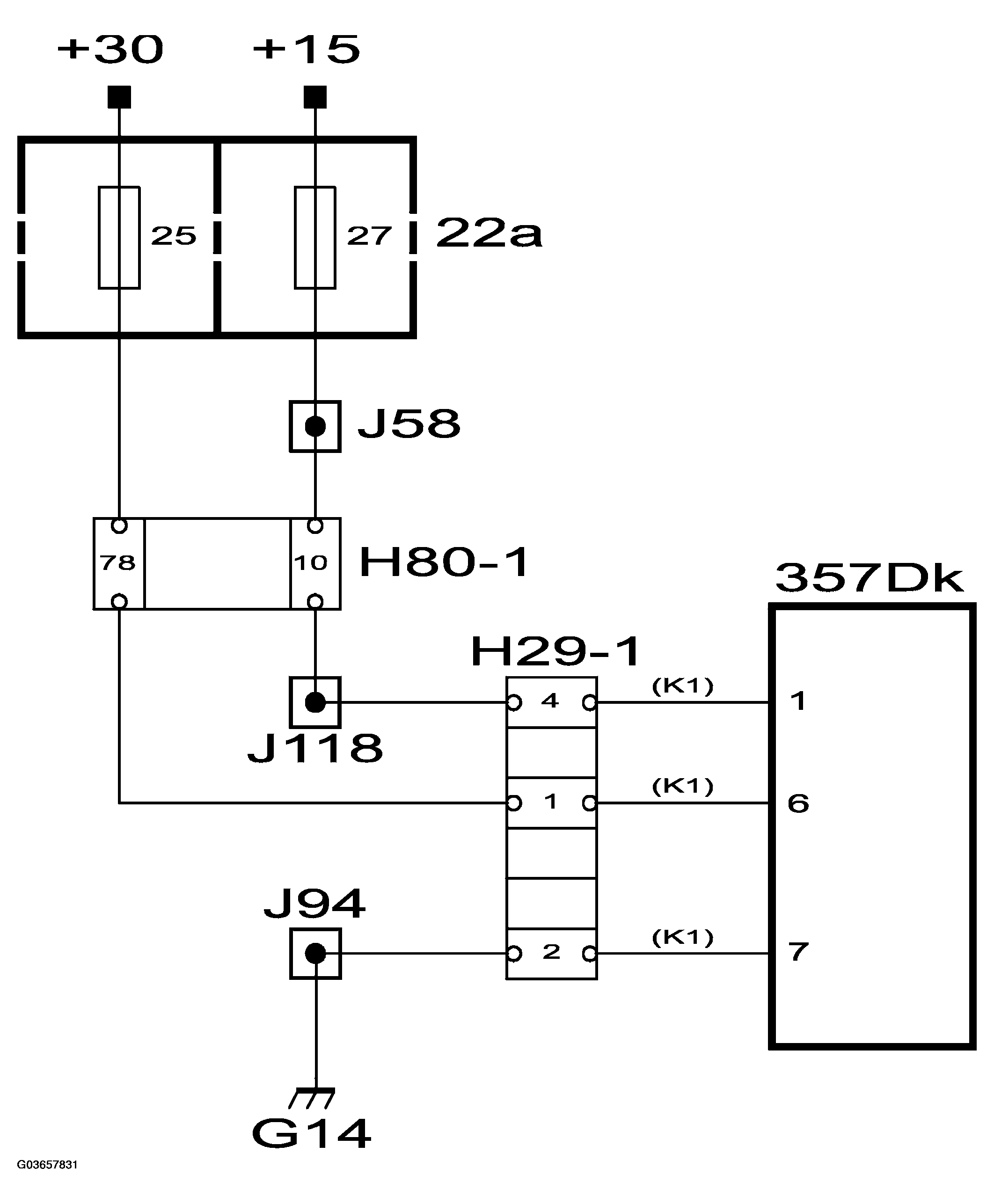

Fig 2: Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
