To remove

  1. Raise the car.
  2. Remove the belt cover.
  3. Unplug the sensor.

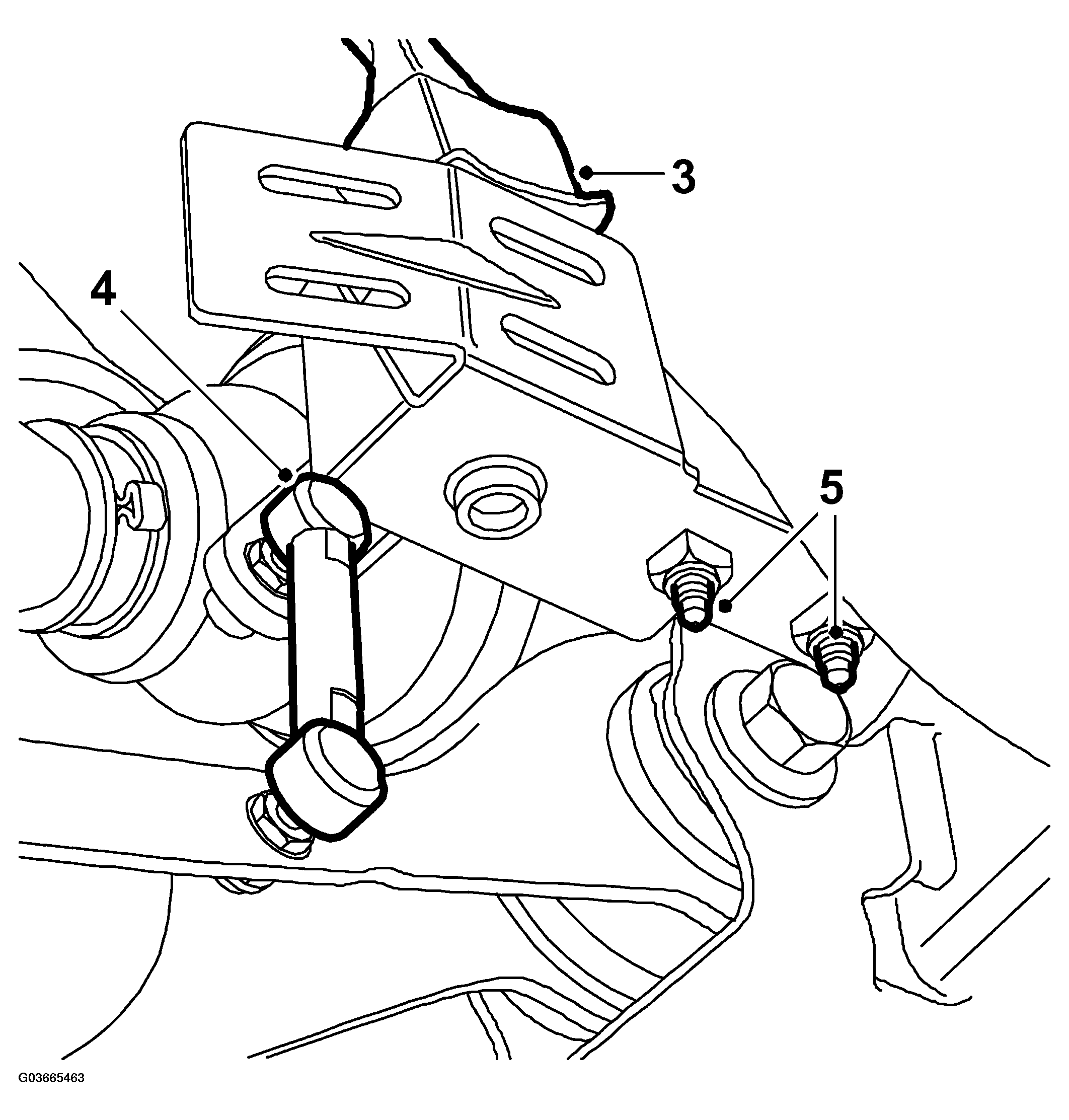

    Fig 1: Illustration For Steps 3 To 5
    G03665463Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Loosen the upper link arm ball joint.
  5. Remove the bracket with sensor by undoing the screws.
  6. Remove the sensor from the bracket by undoing the screws.

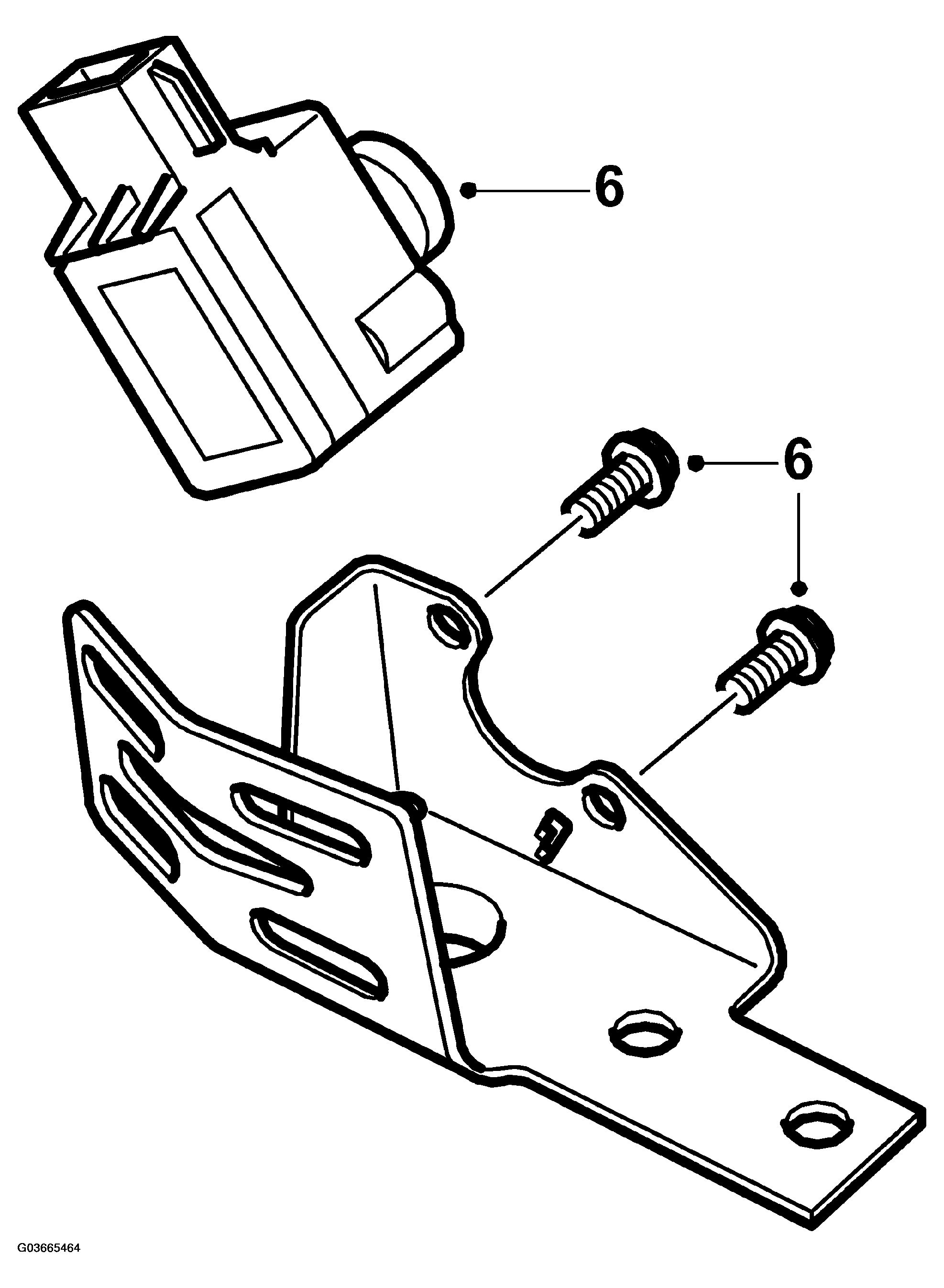

    Fig 2: Removing Sensor From Bracket
    G03665464Courtesy of SAAB-SCANIA OF AMERICA, INC.
