Grounding point G2: Notes

Fig 1: Identifying Grounding Point G2
G03665405Courtesy of SAAB-SCANIA OF AMERICA, INC.

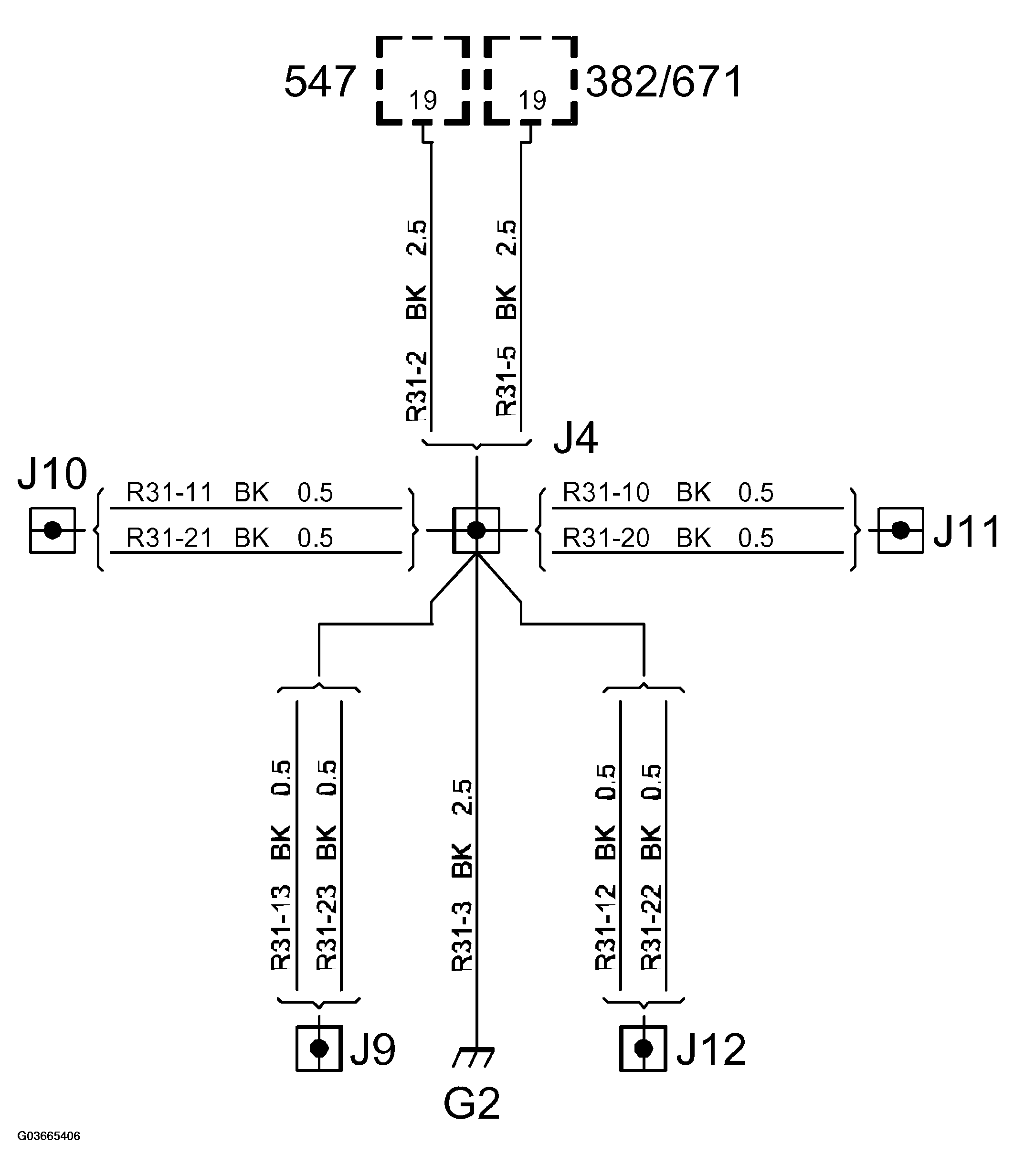

Fig 2: Grounding Point G2 Circuit Diagram
G03665406Courtesy of SAAB-SCANIA OF AMERICA, INC.
