TRIONIC T7 Fuel Control System, 4 CYL.
›
Adjustment-Replacement
›
Temperature sensor, engine coolant
›
To remove
To remove
Carefully loosen the coolant expansion tank cap (to release any pressure) and then screw it back on.

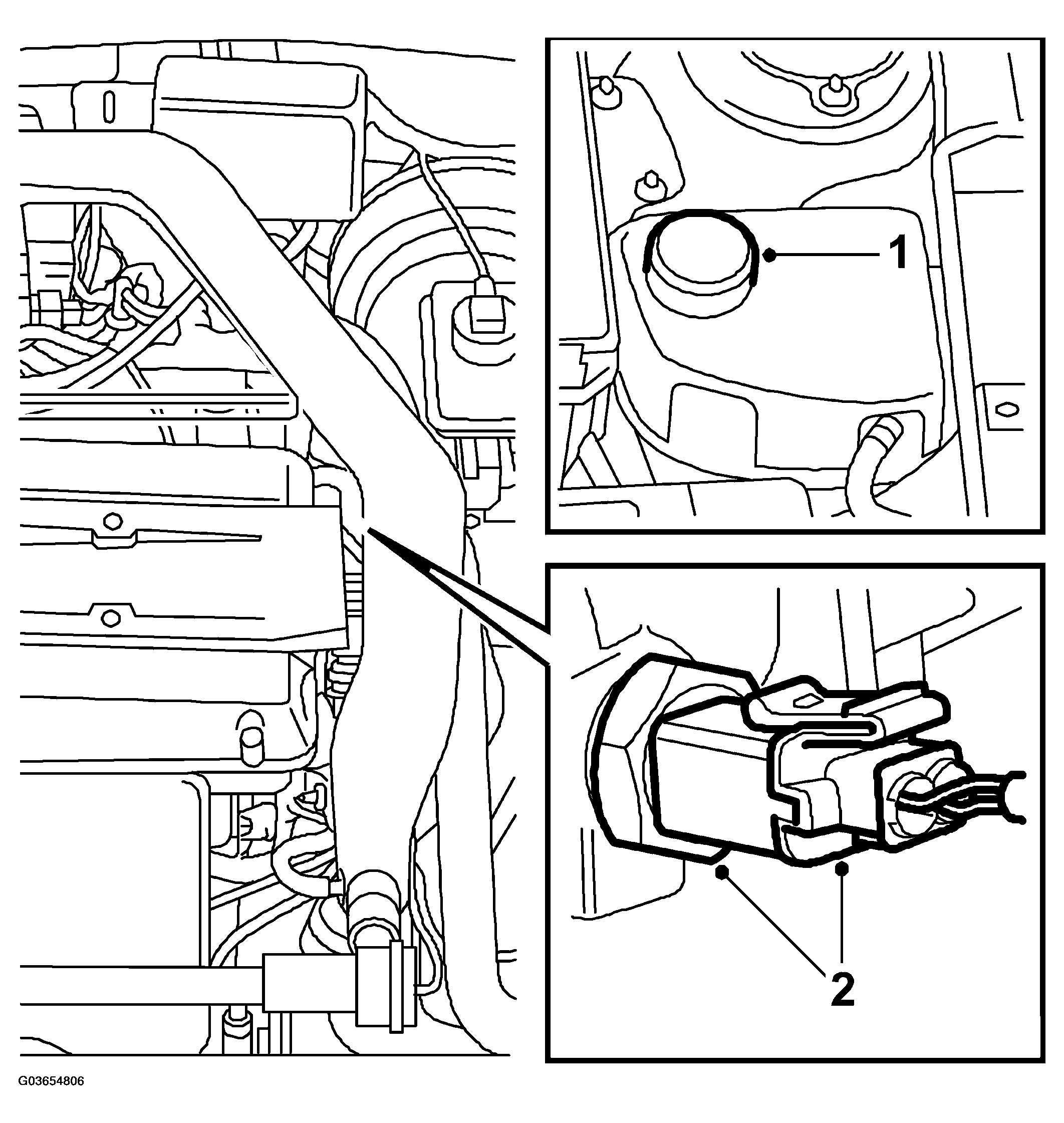

Fig 1: Illustration For Steps 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connector and remove the sensor using a 19 mm dog-leg spanner.
