Crimp J26, engine harness, Trionic: Location:

Approx. 210 mm from branching of connector H24-2 towards the engine control module

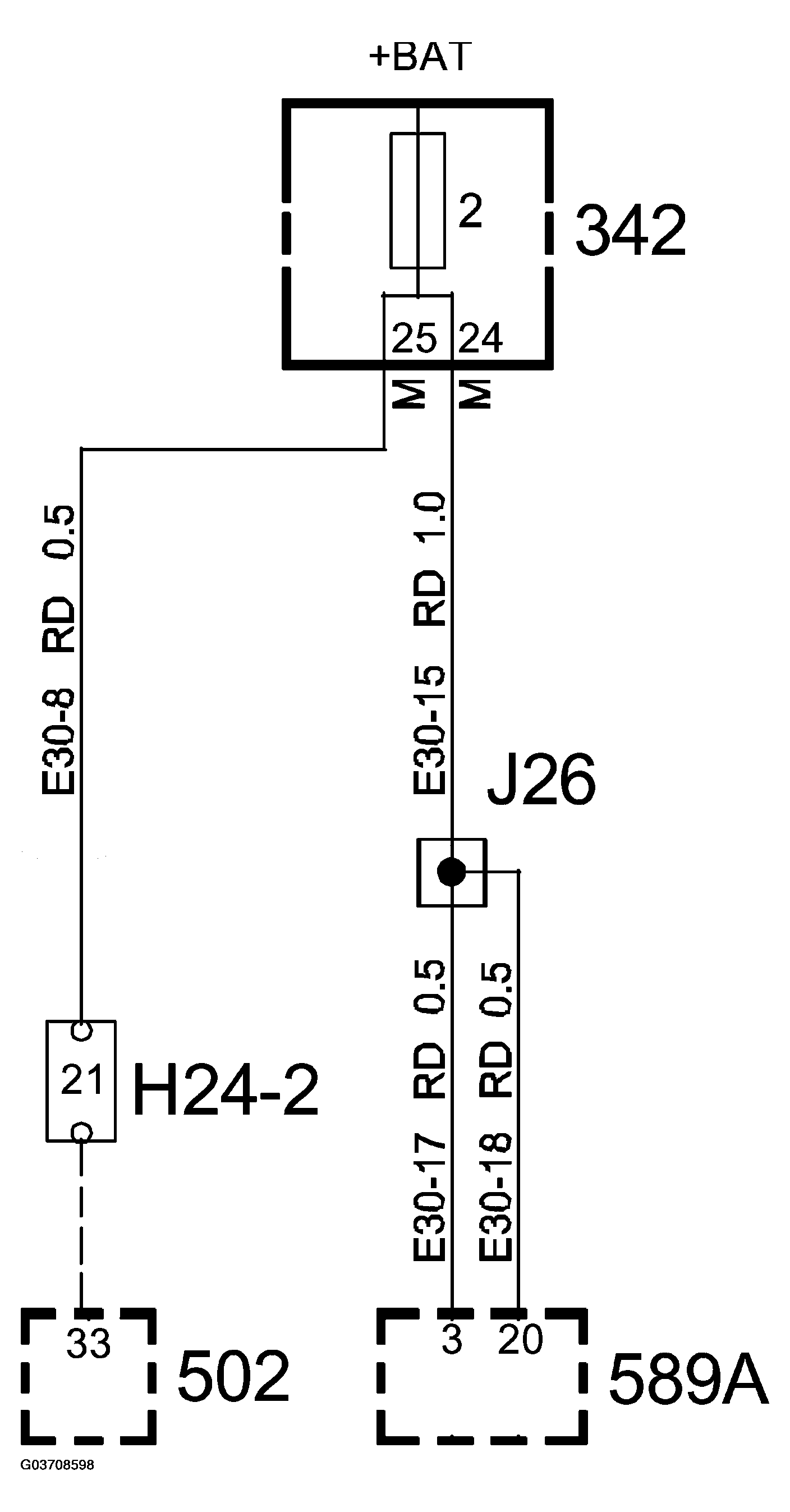

Fig 1: Crimp J26 Engine Harness Trionic Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
