Home › Saab › 2004 › 9-3 Arc, 2D Convertible, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Component Location › Crimp J37, engine harness, Trionic › Location:

Crimp J37, engine harness, Trionic: Location:

Approx. 260 mm from branching of crankshaft sensor towards the engine control module

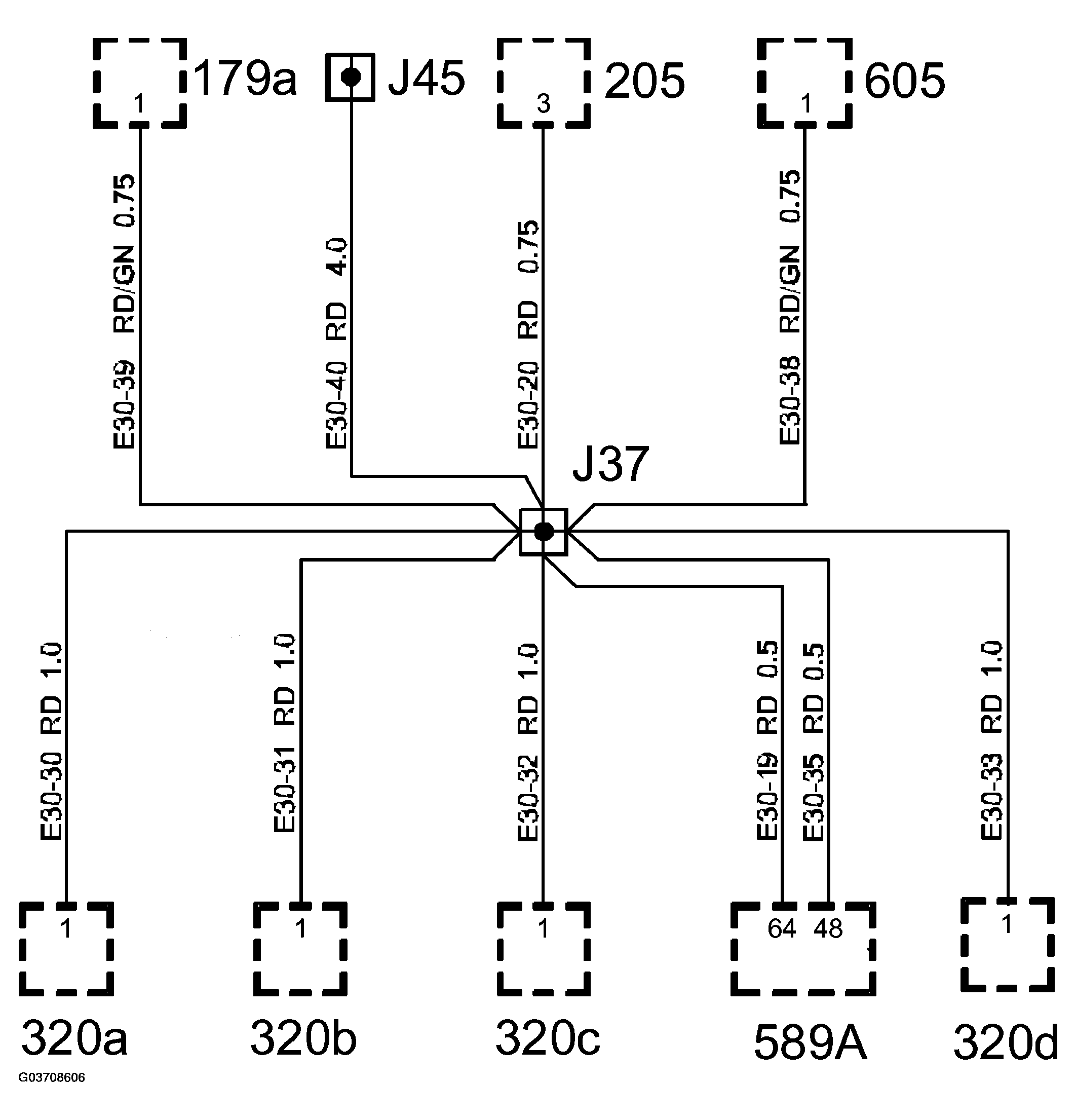

Fig 1: Crimp J37 Engine Harness Trionic Wiring Diagram
G03708606Courtesy of SAAB-SCANIA OF AMERICA, INC.
