Crimp J40, engine harness, Trionic: Location:

Approximately 190 mm from crankshaft position sensor branching point towards the engine control module

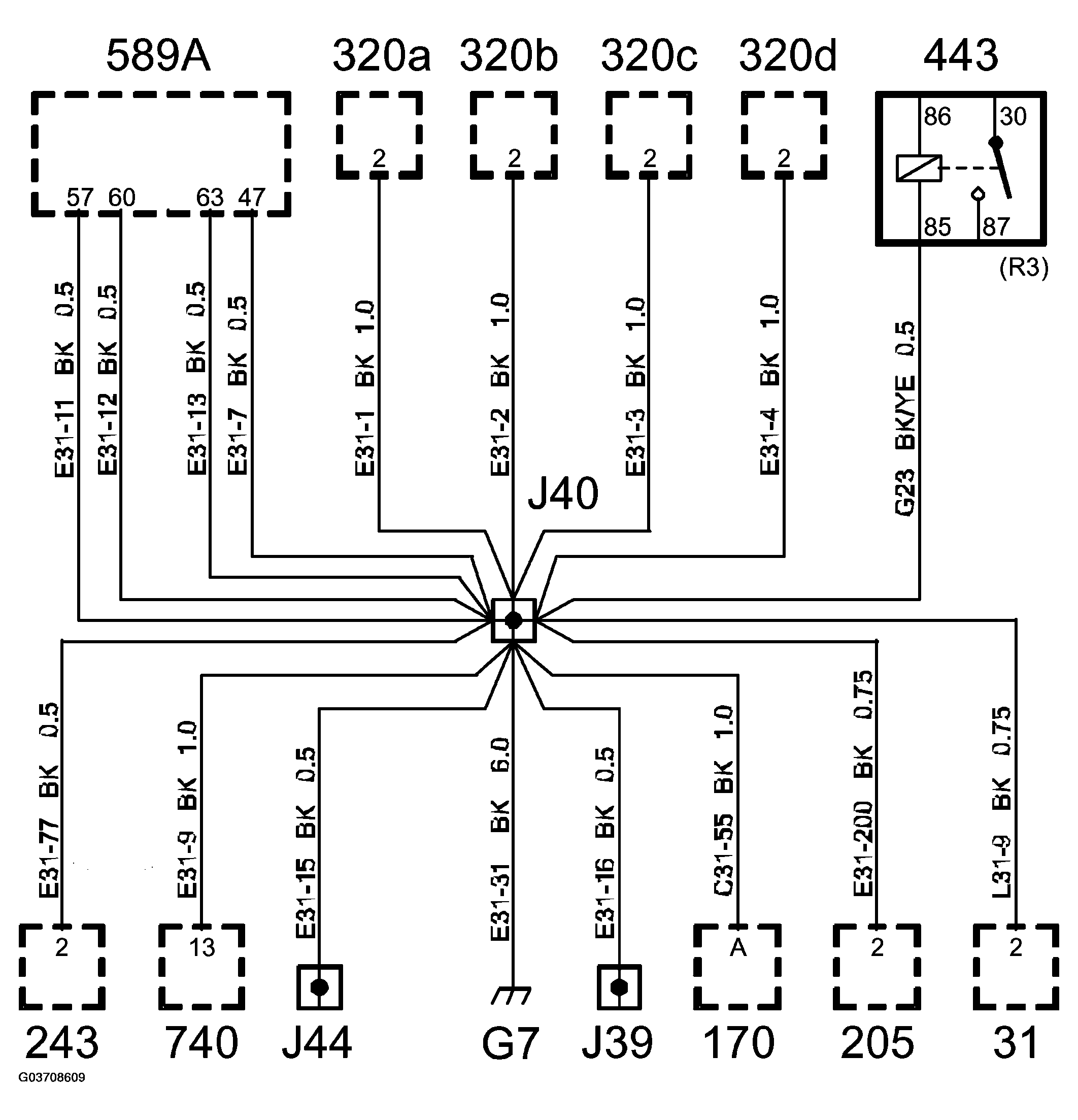

Fig 1: Crimp J40 Engine Harness Trionic Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
